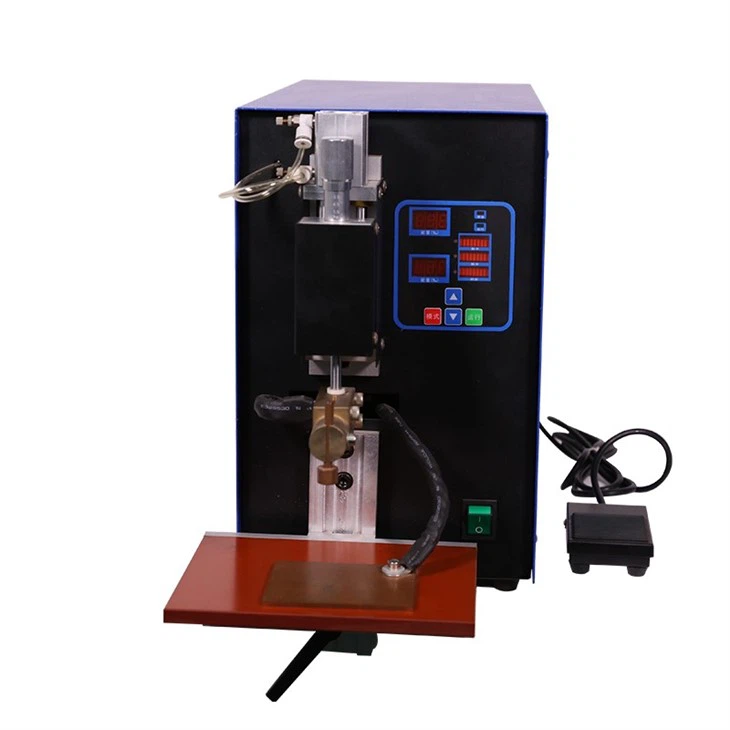

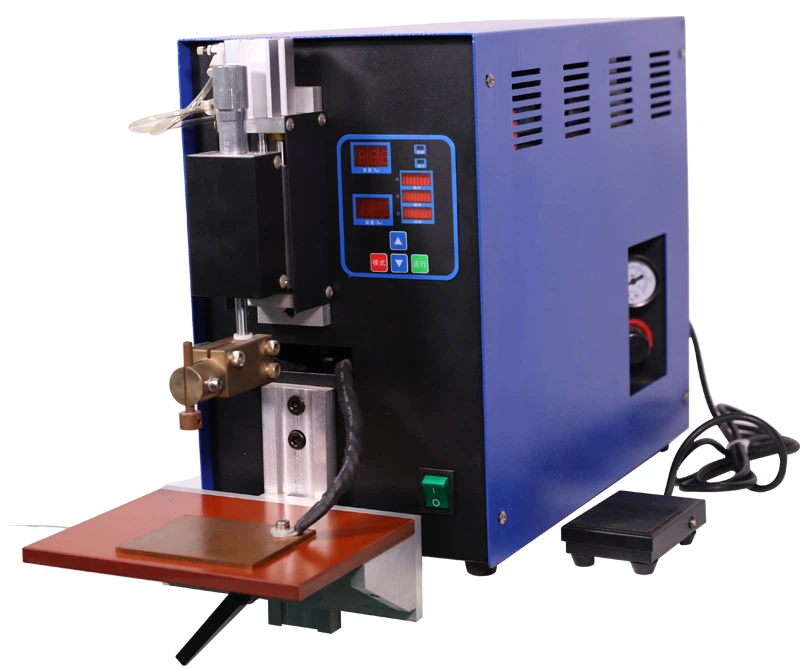

table Single Point Pneumatic Welding Machine for 18650 Cylinder Cell Welder
MR-DH650

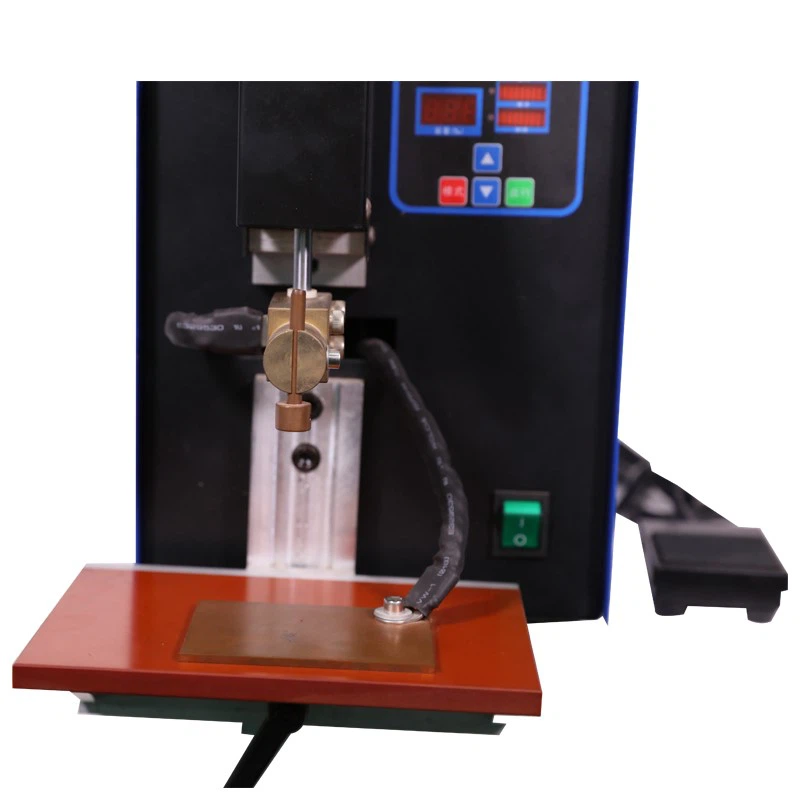

MR-DH650 Precise Pneumatic Single Point Welding Machineis specifically designed for professional Li-on Battery Research. It is mainly used for welding the cylinder core negative terminal (Nickel tab) to the bottom of the cylinder case. 90mm welding needle can easily insert into the cylinder case and weld the bottom. This machine is controlled by microcontroller, which is very easy to operate and can provide stable performance.
Specifications
|
Model |
Single Point Pneumatic Welding Machine TOB-MSK-330A |
|
Power Supply |
220-240V, Single Phase 50/60Hz |
|
Max. Power |
10KW |
|
Air Pressure Range |
0.1 - 0.8 MPa |
|
Welding Current |
0-99A |
|
Welding Thickness |
0.03 - 0.25mm |
|
Operation Temperature |
-20 - 40℃ |
|

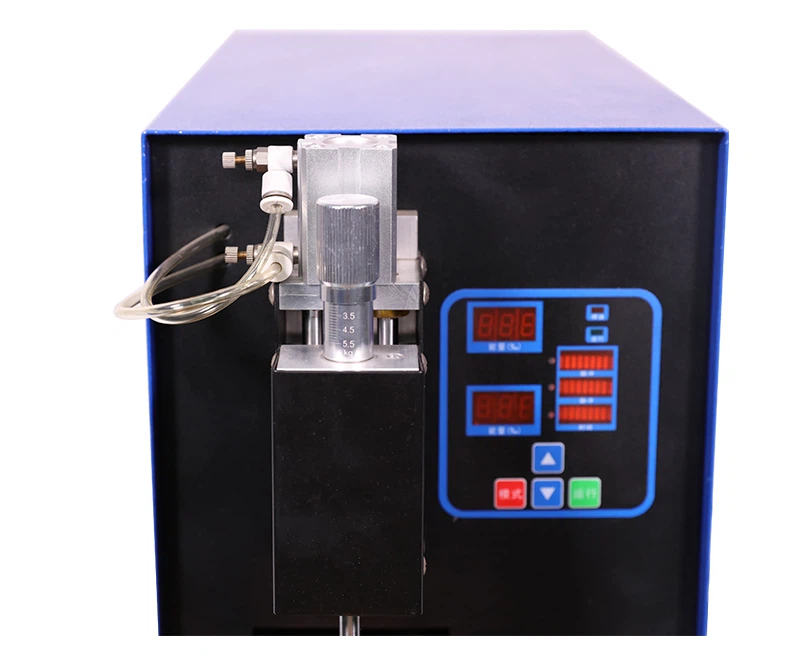

Controller |
Controlled by microcontroller,achieve monopulse, dipulse, mutiple-pulse welding |
|
Pressure |
Pressure applied on the welding needle can be adjusted independently and easy to operate |
|
Design |
Unique Photoelectric switch design Good appearance, small size and light weight Welding spot looks beautiful,free spark, stable welding current |
|
Weight |
45 kg (100 lbs) |
|
Dimensions |
30.5cm(L) x 50.5cm(W) x 49cm(H) |
|
Warranty |
one year limited with lifetime support |
