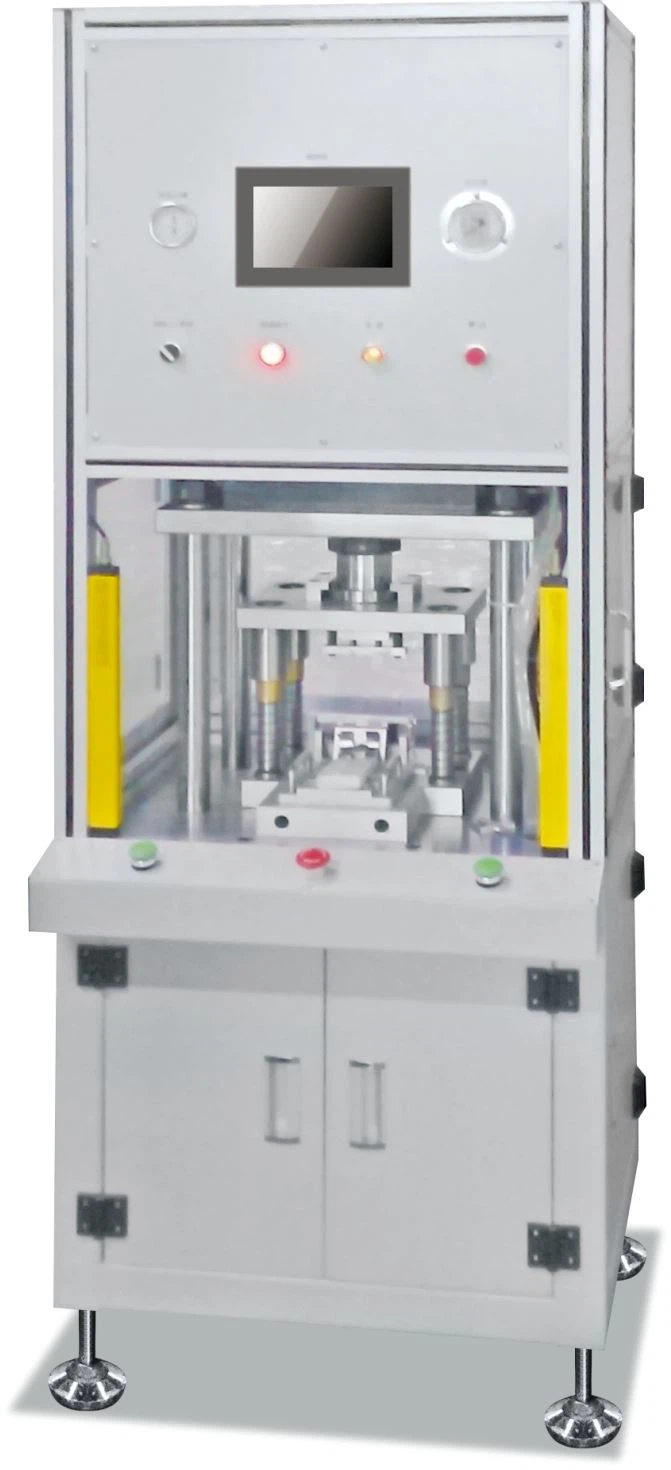

Pole Ear Riveting Machine For supercapacitor
Model: MR-MY130
Pole Ear Riveting Machine suitable for the riveting of supercapacitor and lithium-ion power battery' s pole ear and leading-out terminal.
Features
* Adopt hydraulic system as the punching power, with big force and stable speed
* The device adopts PLC control system to ensure stable and reliable system operation, and simple operation.
* Riveting punch adopts high-strength and high-wear-resisting alloy die steel, with good wear resistance.
* Equipped with safety light grid and protective door, with safe and reliable operation.
Specifications
|
Model |
MR-MY130 |
|
Application |
Suitable for square supercapacitors |
|
The Maximum Slider Stroke |
100mm |
|
The Maximum Riveting Pressure |
≥5KgF, 10T adjustable |
|
Riveting Height Accuracy |
±20um |
|
Mold Riveting Life |
3 million times |
|
Holding Time |
0～10S can be set |
|
Capacity |
≥6pcs/min |
|
Power Supply |
220V/50Hz |
|
Power |
500W |
|
Air Compressed Air Source |
0.5Mpa～0.7Mpa |
|
Dimensions |
L650x W500x H1600mm |
|
Weight |
300KG |
|
Notes |
When riveting, the aluminum pole should not be squeezed and deformed |
Maintenance Methods and precautions
1. Frequently wipe the upper and lower cutting knives, and keep the punching knives clean.
2. Lubricate the moving parts of the guide pin and sleeve of the precision mold to keep the movement smooth.
3. If not in use for a long time, wipe the surface of the upper and lower cutters clean and spray the surface with anti-rust oil for protection.
4. Regularly check the screws, nuts, pins and other fasteners of each part of the machine to prevent loosening and prevent machine quality accidents and personal accidents.
