lithium Battery Vacuum Heat Sealing Machine for Pouch Cell Pre-sealing
MR-YF200
MR-YF200 Compact Vacuum Sealer is mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.
Features
* The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;
* The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
* The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately.
Ensure the parallelism requirements of the product after edge sealing;
* Through the perspective window, you can observe the changes in the cavity while working.
* The cover cavity is driven by an air cylinder and guided by the rotating guide sleeve, which can move up and down flexibly, and the guiding is accurate to ensure the product tightness requirements.
* It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

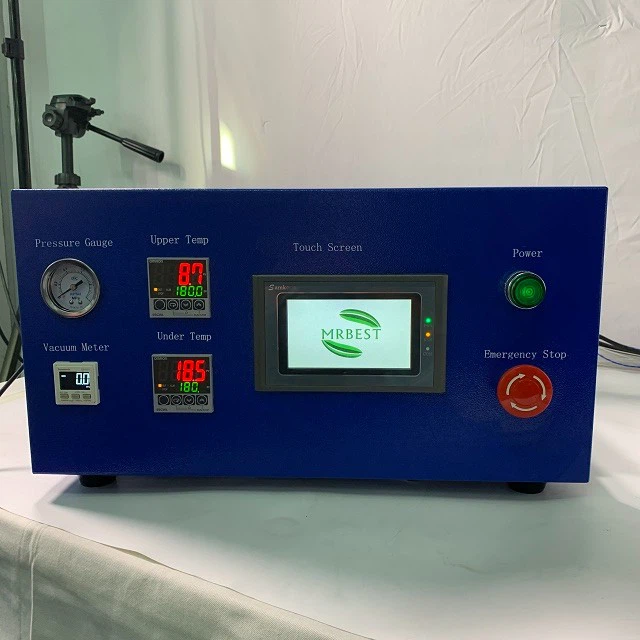

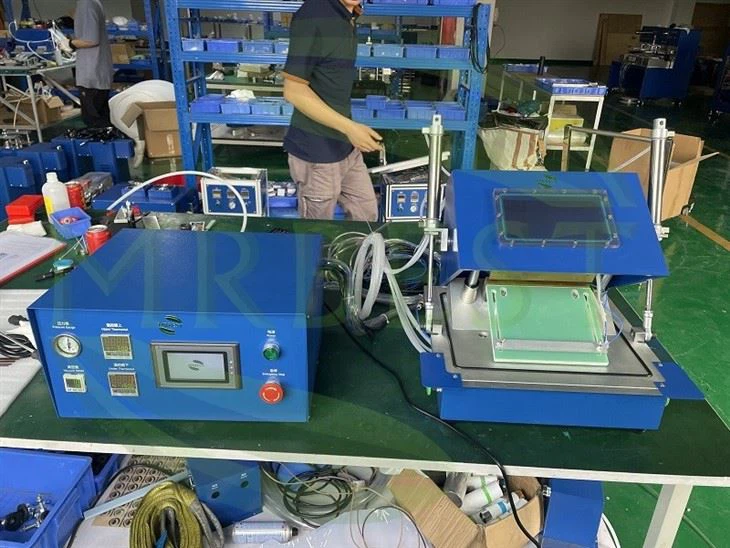

* The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.
* Easy operation, beautiful appearance, small size and light weight.
* PLC touch screen automatic control;
* The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure;
* Vacuum degree can be adjusted up to -95Kpa (the buyer shall provide a vacuum pump);
* The range of the battery is 200 in length and 160mm in width (including air bag position)
Specifications
|
Model |
Compact Vacuum Sealer MR-YF200 |
|
Source voltage |
AC 220V/110V, 50/60HZ |
|
Power |
600W |
|
Warranty |
One year limited warranty with lifetime support |
|
Advantages |
1 Sealing Head adopts copper material, good heat transfer effect, 2 With adjust plate, Can apply to different specifications battery, and the adjusting easily |
|
Vacuum degree |
-95Kpa - 0 |
|
Sealing head TEM |
RT-250℃, adjustable |
|
TEM accuracy |
±1.5℃ |
|
Sealing pressure |
0-7Kg/cm2, adjustable |
|
Sealing time |
0-99s, adjustable |
|
Sealing Blade |
Hard type (without rubber, only for Al case sealing, not suitable for sealing case with tab in between) |
|
Sealing width |
5mm, customized |
|
Sealing head length |
200mm |
|
Suitable battery size (Inner size) |
180*120*10mm |
|
Air source |
0.5-0.7MPa (72.5-102psi) |
|
Dimension(L*W*H) |
Sealing Unit with Chamber Closed: 470*430*480mm Sealing Unit with Chamber opened: 470*430*559mm Control Unit: 420*320*220mm |
|
Weight |
About 50kg |
