Prismatic Cell Manufacturing Machine

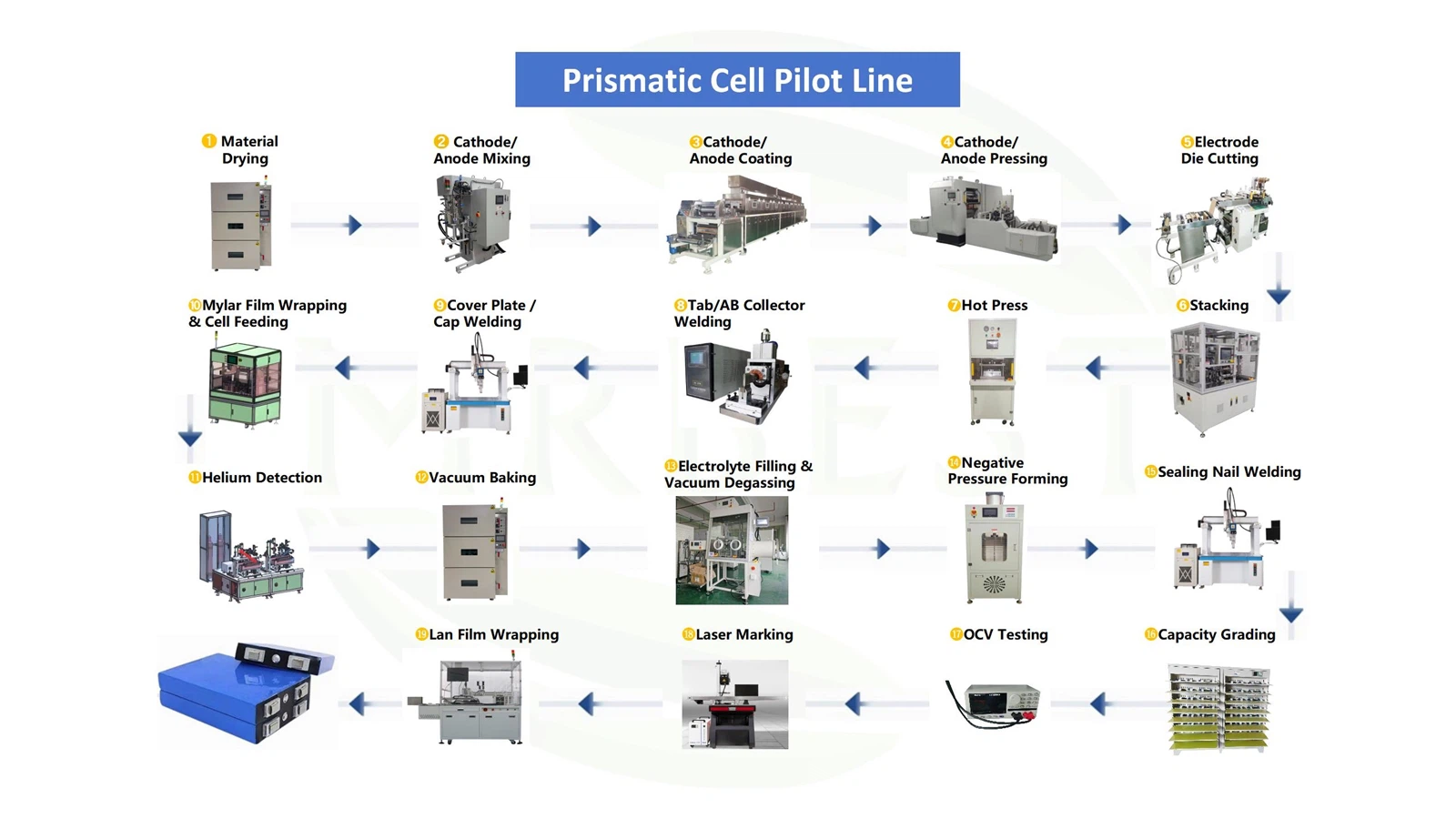

Prismatic Cell Batteries are increasingly used in electric vehicles, energy storage systems and other fields. MRBEST provides prismatic cell battery production solutions and machine: including Vacuum Mixer, Coating Machine, Battery Calendering, Electrode Die Cutting, Stacking Machine, Hot Press Machine, Ultrasonic Welding Machine, Laser Welding Machine, Mylar Film Wrapping & Cell Feeding, Helium Detection, Vacuum Oven, Electrolyte Filling and Vacuum Degassing, Negative Pressure Forming Machine, Grading Machine, OCV Tester, Laser Marking and Film Wrapping etc.

Electrode Coating:
The anodes and cathodes in Lithium cells are of similar form and are made by similar processes on similar or identical equipment.
The active electrode materials are coated on both sides of metallic foils which act as the current collectors conducting the current in and out of the cell. The anode material is a form of Carbon and the cathode is a Lithium metal oxide. Both of these materials are delivered to the factory in the form of black powder and to the untrained eye they are almost indistinguishable from eachother. Since contamination between the anode and cathode materials will ruin the battery, great care must be taken to prevent these materials from coming into contact with eachother. For this reason the anodes and cathodes are usually processed in different rooms.

Prismatic cell is often used for high capacity battery applications to optimise the use of space. These designs use a stacked electrode structure in which the anode and cathode foils are cut into individual electrode plates which are stacked alternately and kept apart by the separator. The separator may be cut to the same size as the electrodes but more likely it is applied in a long strip wound in a zig zag fashion between alternate electrodes in the stack.
