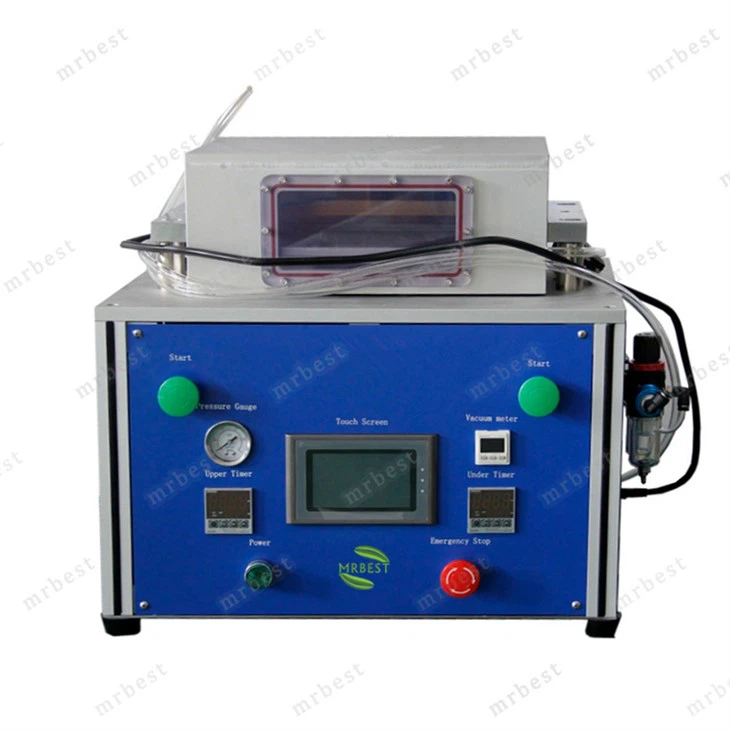

pouch Cell Final Vacuum Sealing Machine with Auto Piercing Function for Battery Making
mR-BFZ200
Lithium Battery Equipment Secondary Vacuum Sealing Machine for Polymer Cell after Electrolyte Filling, battery final sealing machine is used for lithium pouch cell vacuumizing and final heat sealing after filling & electrolyte diffusion process.
* The sealing head is made of copper materials, have a good heating transfer effect and power saving,can improve the work effective and more energy saving than other similar product;
* The pressure of the upper and lower sealing head can adjust by pressure regulator to achieve difference process parameter requirement;
* The upper and lower sealing head driven by cylinder and the direction controlled by two linear guide sheath.Flexible move ,accurate guide guarantee the parallelism requirement of the product after sealing.;
* With pierce function;
* Chamber lid driven by cylinder,and guide by linear sheath,flexible up and down activities,which can promise the requirement of the sealing performance;
* Can suit for difference model battery, and easy to adjust;
* Easy to operate,beauty appearance, small size and weight;
Products Description
| Name: Pouch Cell Final Vacuum Sealing Machine with Auto Piercing Function MR-BFZ200 | |
|
Cavity made of aluminum alloy, corrosion-resistant, solid structure |
|
|
Vacuum up to-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump) |
|
|
Head temperature: |
RT ~ 250 ℃, temperature adjustable |
|
Temperature control accuracy: |
± 1.5 ℃ |
|
Heat sealing pressure: |
0 ~ 7Kg / cm2 adjustable |
|
Sealing time: |
0 ~ 99 seconds adjustable |
|
Edge width: |
5mm (according to customer requirements) |
|
The maximum edge size: |
200mm (can be customized) |
|
Head parallelism: |
with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal |
|
Air consumption: |
about 0.2L compressed gas / each time |
|
Pneumatic working speed: |
≥ 180 times / h |
|
Power: |
300w heat pipe, heating when the power consumption of about 0.6KW |
|
Power supply: |
220V / 50Hz |
|
Power: |
800W |
|
Compressed air source: |
0.5 ~ 0.7Mpa |
|
Dimension |
|
|
Working Department(L*W*H) |
510mm * 350mm * 500mm |
