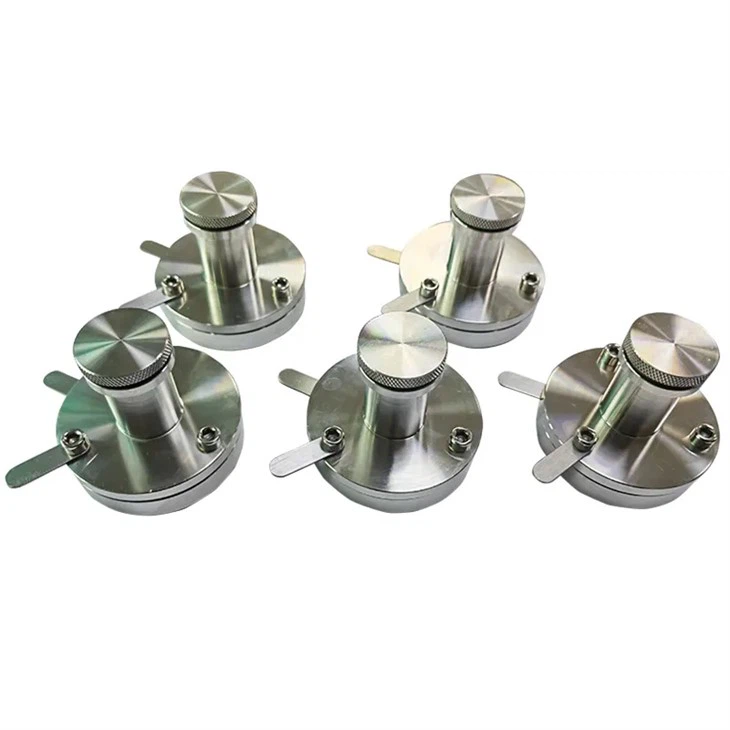

Steel Split Test Cell

Structure

Stainless Steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection

Two electrodes design

Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings

Compact design fits in any benchtop glove boxes

Grooved area on lower split to fixed position of the anode electrode

Cell Thickness

1~3mm (cathode+separator+anode)

Bottom Recess Area

Bottom Recess Area

Bottom Recess Area

200°C

Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet

Warranty

One Year limited manufacturer warranty with lifetime support

Dimensions

Φ80×62mm

Optional

Anti-corrosive Au coating on the cell internal and inserts is an option.

Application Notes

Assembly of Li-Air Batteries, please click the picture below to learn.

Consumable materials are available in "Related Products" section.

For sodium air batteries of using the Lithium Air Battery cell in a pure oxygen environment, the two valves are not greased.(do not need to worry about using greased valves with pure oxygen can result in combustion).

Warning: The included 1/16" O.D. Stainless Steel Gas Inlet Tube must be cut by a dremel or the cutting pliers. Otherwise, the hole will be blocked and gas will not flow to the split test cell.
