Compact Manual Hydraulic Cylindrical Battery Crimper For Cylindrical Cell cases Sealing
MR-CF650
MR-CF650 Small hydraulic cylindrical battery sealing machine is a patented product of a small hydraulic cylindrical battery crimping machine: the standard sealing mold is a set of 18650 seals, and various mold accessories can also be replaced to seal various cylindrical batteries.
Features
● Equipped with a pressure gauge, you can observe and adjust the sealing pressure of cylindrical batteries.
● Just replace 2-3 mold parts to package various cylindrical batteries.
● Small size allows operation to be completed in the glove box.
● Easy to operate, low force, safe and reliable, and beautiful in appearance.
Specifications
|
Model |
Hydraulic Cylinder Cell Sealing Machine MR-CF650 |
|
Suitable Range |
Diameter φ10mm~φ26mm x Height 15mm~70mm cylindrical battery |
|
sealing Pressure |
The pressure is adjustable. This machine will be set to 60kg/cm2~100kg/cm2 if there are no special requirements when leave factory |
|
Sealing Stroke |
40mm |
|
Crimping Dies |
Standard 18650 Cylindrical battery sealing mould (1 set, 2 sealing). You can also choose other Cylindrical battery sealing mould as 18650/21700/ 26650 / 32650 /AA/ AAA |
|
Product Dimensions |
235mm(L) x 190mm(W) x 360mm(H) |
|
Application Notes |
Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the MR-GC650 grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by certain model of equipment. |
|
Net Weight |
31kg |
|
Package Weight |
45kg |
|
Package size |
370*330*520mm |

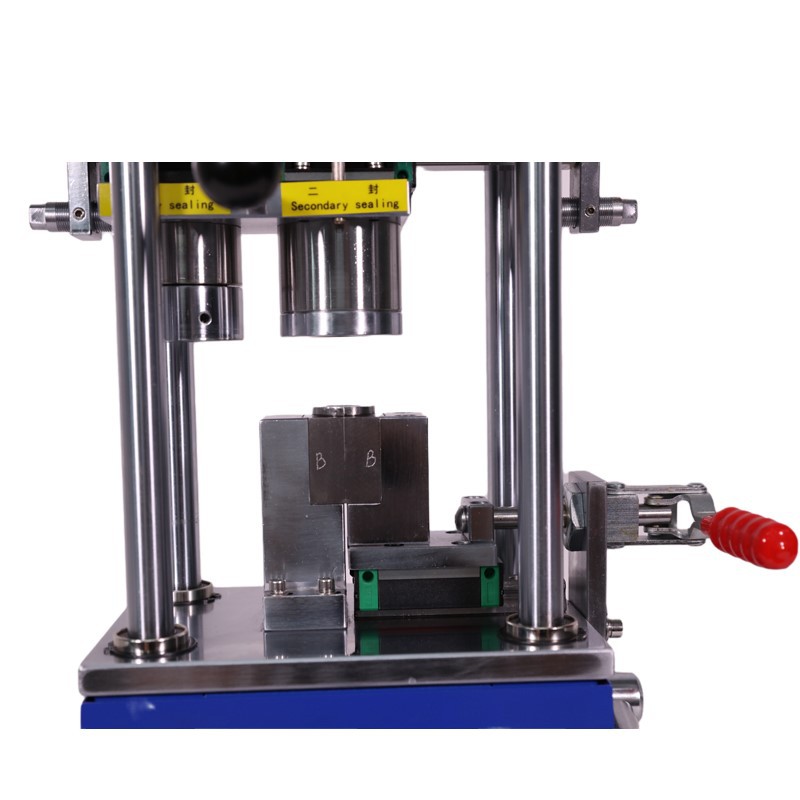

Pictures for reference
