pneumatic cylindrical battery sealing machine for cylindrical cell crimper
mR-QF650
MR-QF650 pneumatic cylindrical battery sealing machine is used for various size of cylinder cell and supercapacitor sealing process.(Optional Die 18650, 21700, 26650, 32650, 32700, etc.)
Configuration Die:
Standard 18650 cylindrical battery sealing die 1 set of 2 times sealing
(optional other cylindrical battery sealing dia).
features
* Pure pneumatic operation, no need to use electricity, easy to use;
* Two-station sealing, better sealing effect;
*Precise mold design ensures accurate and reliable sealing and solid steel structure design,
stable and safe to use.
* Beautiful appearance, easy maintenance, small size, convenient operation.
* Can choose Compressed air or inert gas cylinders. The external exhaust of compressed air can prevent the atmosphere of the glove box from being damaged.
Specifications
|
Model |
Pneumatic Cylindrical Battery Sealing Machine MR-QF650 |
|
Air Source |
0.6 to 0.8 MPa argon, nitrogen gas cylinder, or compressed air (it is not recommended to use compressed air in the glove box) |
|
Exhaust design |
Specially designed exhaust port, can be externally connected by KF40 and other devices |
|
Gas consumption |
one seal consumes about 480ml |
|
Sealing pressure |
manual control valve, maximum pressure 1MPa, recommended pressure 0.7MPa |
|
Sealing stroke |
30mm |
|
Sealing dia |
standard 18650 series packaging dia, optional or additional specifications |
|
Installation size |
L290mm*W205mm*H330mm |
|
Weight approx. |
27Kg |
|
Structural material |
high-strength chrome steel, the surface will not rust after environmental protection plating and spraying. |
|
Compliance |
CE Certified |
|
Warranty |
One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty |

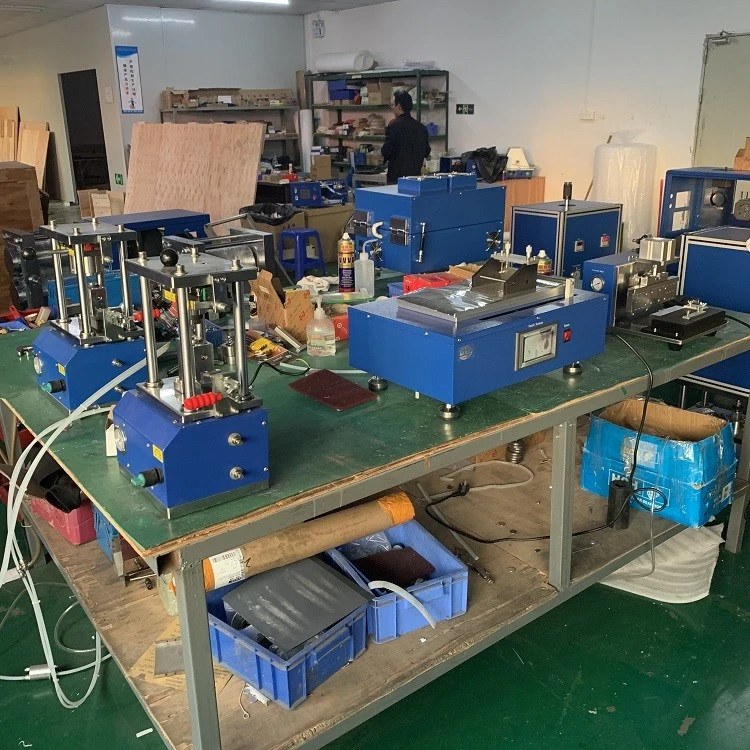

Pictures for reference
