Lithium Battery Making Machine Manual Electrode Winding Machine for Cylindrical Cell
mR-JR90

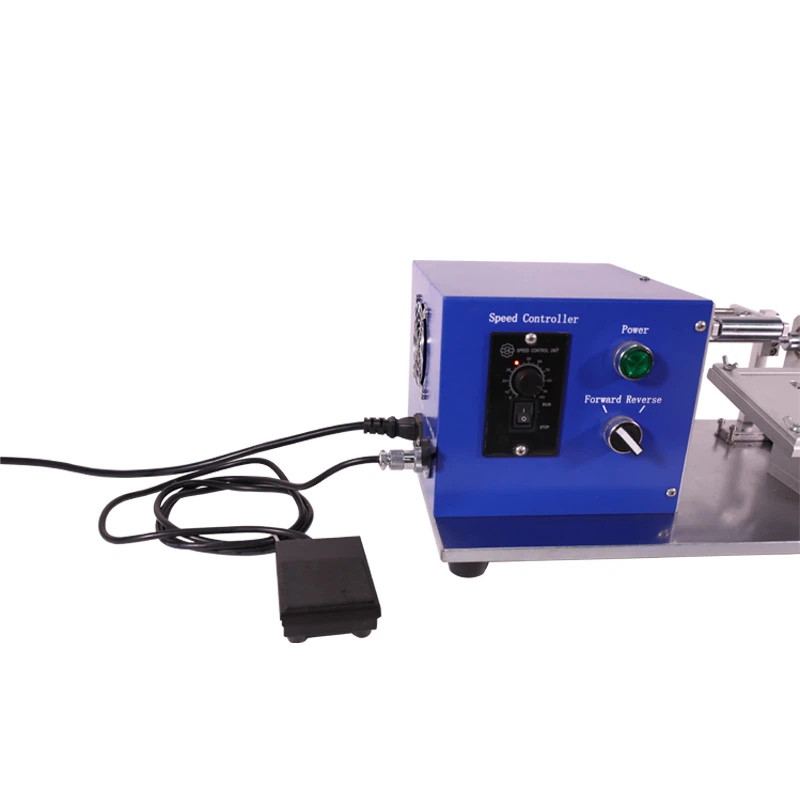

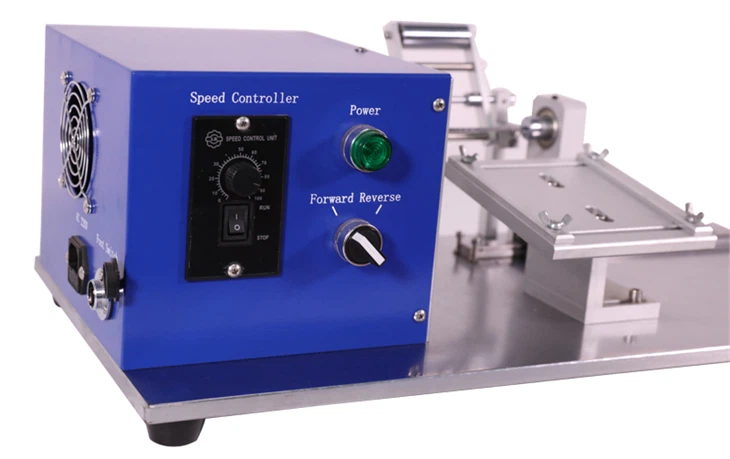

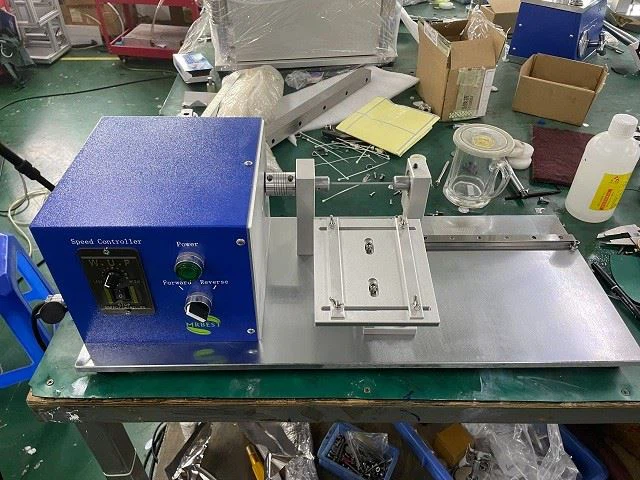

MR-JR90 is a CE Certified semi-automatic winder for winding electrodes with separator together in the research of Li-ion cylinder batteries.

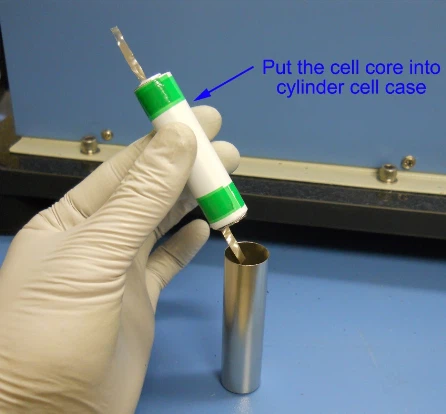

It is suitable for supercapacitor, cylindrical battery, flexible packaging lithium battery pole piece winding, and the positive and negative electrode sheets and the diaphragm are wound into a battery core.
Features

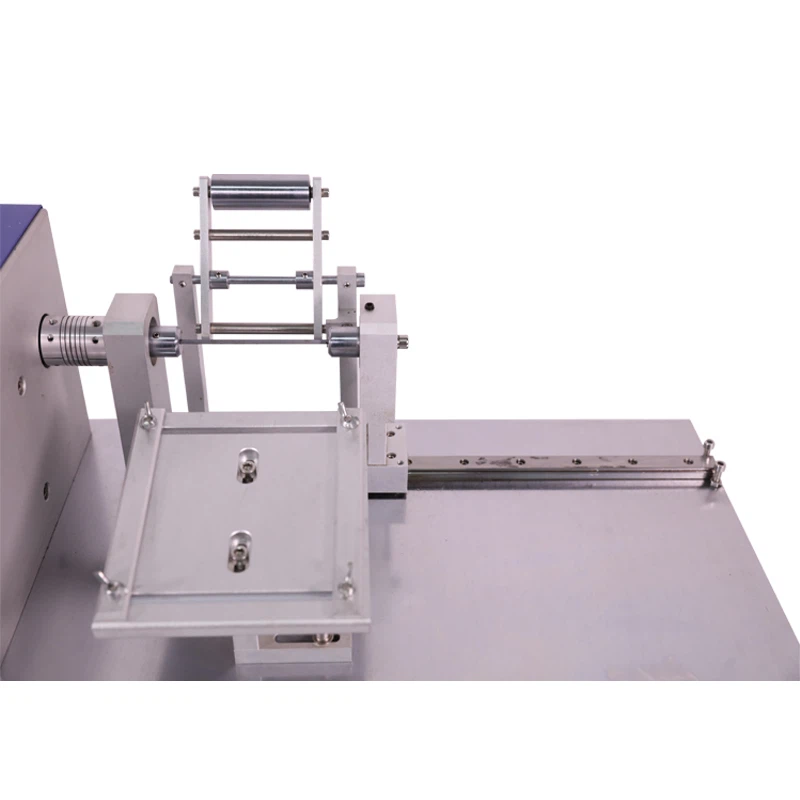

*The upper and lower, left and right, front and rear positions of the guide plate slot plate can be adjusted;
*The winding roller ensures the winding tightness when the battery core is wound;
* Increase the winding tail bracket to improve the winding accuracy of the battery core;
* Winding can be reversed and reversed, winding stepless speed regulation;
*The machine is small in size, exquisite in appearance and easy to operate;
Specifications
|
Model |
Manual Electrode Winding Machine MR-JR90 |
|
Winding Shaft |
Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core Other sizes like 14500, 26650 and 32650 are available upon request |
|
Winding Speed |
0 - 170 RPM Adjustable |
|
Suitable for flat cell size |
Length (20 ~ 100) * width (20 ~ 80) * thickness (0.5 ~ 10) according to customer selection. Applicable to cylindrical batteries: Φ35*L90mm or less (replacement of wound flat batteries and cylindrical batteries need to be replaced) |
|
Working Voltage |
220V AC, 50/60Hz |
|
Power |
25W～40W |
|
Product Dimensions |
L550mm*310mm*280mm |
|
Winding Mode |
Switchable between clockwise and counterclockwise |
|
Output |
70-100EA/h, according to battery size and maunal |
|
Net Weight |
25KG |
|
Gross Weight |
37kg |
|
Package Size |
720*340*240 mm |
|
Application Notes |
This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model. |
|
Compliance |
CE Certified |
|
Warranty |
One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
