Roll To Roll Pressure Controlled Roller Press Machine for Battery Electrodes

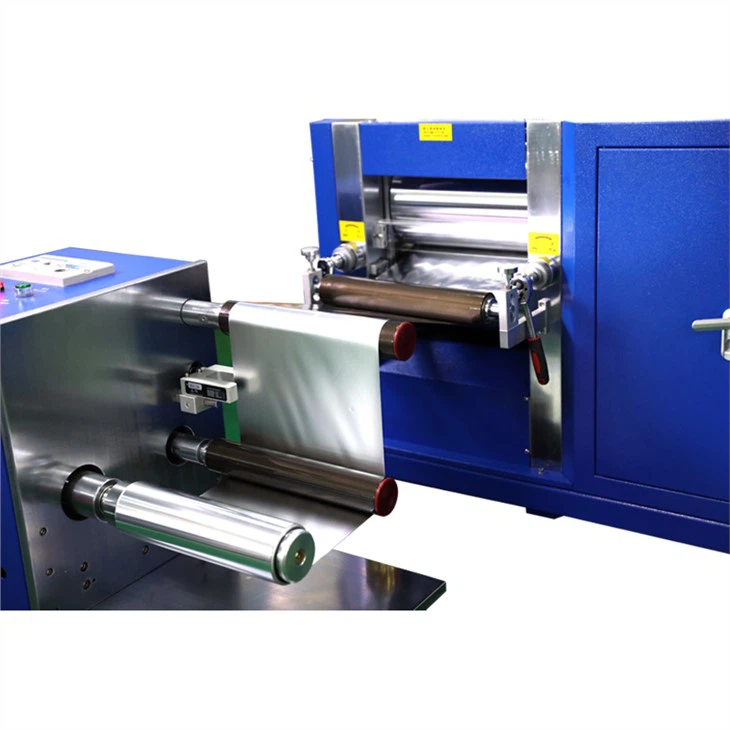

Roll To Roll Pressure Controlled Roller Press Machine MR-DG300-SF is a tiny, less than 6'x6' automatic battery electrode rolling press system with precision digital pressure control. It combines pressure-controlled electric rolling machine with tension-controlled feeding and winding devices to produce electrode rolling and pressing that is completely automatic and up to 75 meters long with a maximum width of 300 mm. It is the ideal instrument for creating prototypes (such as pilot scale research) of new rechargeable battery generations and for rolling electrode sheets under uniform and repeatable circumstances.

Features

*Integral gantry frame, CNC precision machining to ensure high precision and stability;
*The roller is made of imported cold-rolled chrome molybdenum material by heat-treated surface chrome plating and cryogenic treatment, with high internal and external hardness and good wear resistance;
*American original imported hydraulic system, automatic control rolling pressure;
*Patented hydraulic balanced rolling mechanism, stable pressure maintaining, good rolling uniformity in transverse and longitudinal direction;
*Inclined block type roll gap adjustment device, surface display adjustment;

Specifications

Name	Roll To Roll Pressure Controlled Roller Press Machine
Voltage	220V/110V, 50/60Hz
Rolling force	Max 25ton
Maximum adjustable gap	2 mm
Rolling speed	Max.6m/min adjustable
Roller size	Ф200 mm*330mm width
Roller material	9Cr3Mo
Roller surface hardness	HRC65~68
Roller inner hardness	HRC60-62
Roller surface roughness	Ra≤0.4
Circular run-out error	＜±2μm
Control mode	PLC control
Roller heating temperature (optional)	RT~150℃
Winding&unwinding system (optional)	Available
Pressure driven mode	Hydraulic
Rolling accuracy	±1.5μm
Reducer and gear box	Combination type
Motor	AC variable frequency motor
Overall machine dimension	1400mm L X 500mm W X 1300mm H
Power	2KW
Gas requirement	0.5-0.8MPa compressed air
Machine weight	About 600KG
Use environment	It is recommended that the ambient temperature is 25 ± 3 ℃, the humidity is 30 ~ 90rh, and there is no vibration and electromagnetic interference
Note	The reduction of lithium electrode piece is 20% ~ 30% at a time. If it is thinner, it needs to be rolled several times (5μm/ time)
