3 Layers High Vacuum Degree Laboratory Drying Oven for Battery Material and electrode Baking
Model: MR-ZD3A
The oven inner chamber is made of stainless steel, and each working chamber runs independently. Automatic cycle for heating, vacuuming, and gas filling. It adopts PLC &Touch screen control system with high automation. Flow blast for heating & dissipation quickly. Great performance in pressure holding.
Features
* 3 layers stainless steel inner chamber with 3mm thickness, anti-resistance and durable.
* The device is equipped with universal movable casters for moving easily.
* The equipment adopts 304 stainless steel heating tube coiled inside the heating type, uniform temperature control, the device has been monitored at 80℃, 100℃, 120℃ and other temperature monitoring points to monitor the temperature before delivery.
* The equipped is sealed with silicone rubber seals, 15mm thick tempered glass door, each door is designed with an observation windows.
* Side-door designed. Two stainless steel brackets in each chamber are devided into 3 layers (layer height 103mm).
Specifications
|
Model |
3 Layers High Vacuum Degree Drying Oven MR-ZD3A |
|
Voltage |
AC380V, 50Hz |
|
Power |
12KW |
|
Over temp |
RT~150℃ adjustable |
|
Inner liner dimension |
W660 * D900 * H330mm |
|
Heating time |
≤35min, RT~85℃ (No load) |
|
Over surface temp |
RT±10℃ (when working temp at 85℃) |
|
Inner chamber material |
3mm thickness SUS 304 stainless steel |
|
Inner chamber temp error |
±2℃ (No loading in vacuum state) |
|
Protection function |
Automatic power failure protection; Automatic over-temp alarm |
|
Vacuum holding time |
Gas leakage rate 20Pa/h evenly within 24h |
|
Vacuum degree |
≤10Pa |
|
Dimension |
W1410 * D1500 * H1900 |
|
Weight |
1200kg |

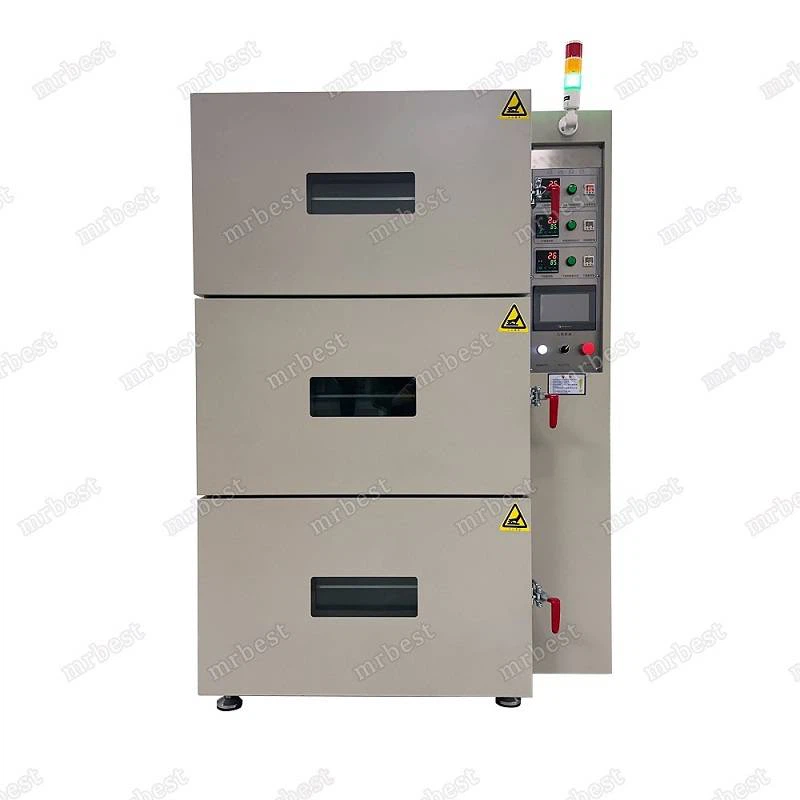

picture for reference
