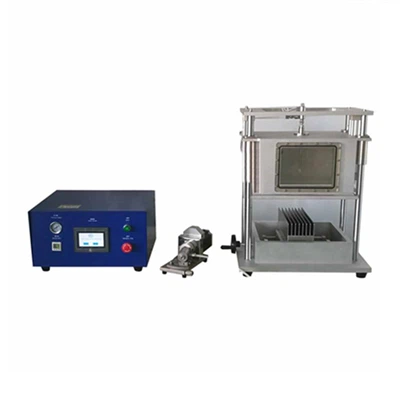

Pouch Cell Second Sealing Machine

MR-BFZ200 Pouch Cell Second Sealing Machine is used for pouch cell final vacuum sealing after electrolyte injection and cell formation, it is with auto piercing function to de-gassing the cell and do a secondary sealing under vacuum condition. It is touch screen operation high automation.
Send Inquiry
Chat Now

Product Introduction



Pouch Cell Second Sealing Machine For Pouch Battery Production


Model: MR-BFZ200



Pouch Cell Second Sealing Machine is used in the final sealing process of pouch lithium-ion batteries after electrolyte injection, formation, and degassing. It is with auto piercing function to de-gassing the cell and do a secondary sealing under vacuum condition. It is touch screen operation high automation. This step is critical for ensuring an airtight, durable seal, preventing electrolyte leakage, and maintaining battery performance.



Features





● With piercing needle, piercing function can be completed automatically.

● Sealing blade is made from copper with good heat conduction.

● Upper and lower sealing blade sealing pressure can be adjusted.

● Upper and lower sealing blade temperature be controlled separated and settable, digital display by thermostat.

● The lid can go down only by pressing the 2 start buttons at the same time to avoid hands get injured.

● Touch screen operation, high automation.

● Sealing time can be set.

● Through perspective window to observe it during working.

● The lid will open automatically when it finished sealing.



Products Description





Model

Pouch Cell Second Sealing Machine MR-BFZ200

Sealing head temperature

RT-250℃,adjustable

Temperature control precision

±1.5℃

Heat sealing pressure

0-7kg/cm2,adjustable

Heat sealing time

0-99 second,adjustable

Sealing width

5mm,adjustable

Vacuum degree

-90Kpa ~ 0 adjustable (vacuum pump optional)

Voltage

220V/50Hz

Power

300W heat pipe,

heating when the power consumption of about 0.6KW

Compressed air source

0.5-0.7Mpa

Size

L500mm*W500mm*H700mm

Head parallelism

with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal

Air consumption

about 0.2L compressed gas / each time

Pneumatic working speed

≥ 180 times / h

Dimension

515mm * 350mm * 505mm

Weight

56kg
