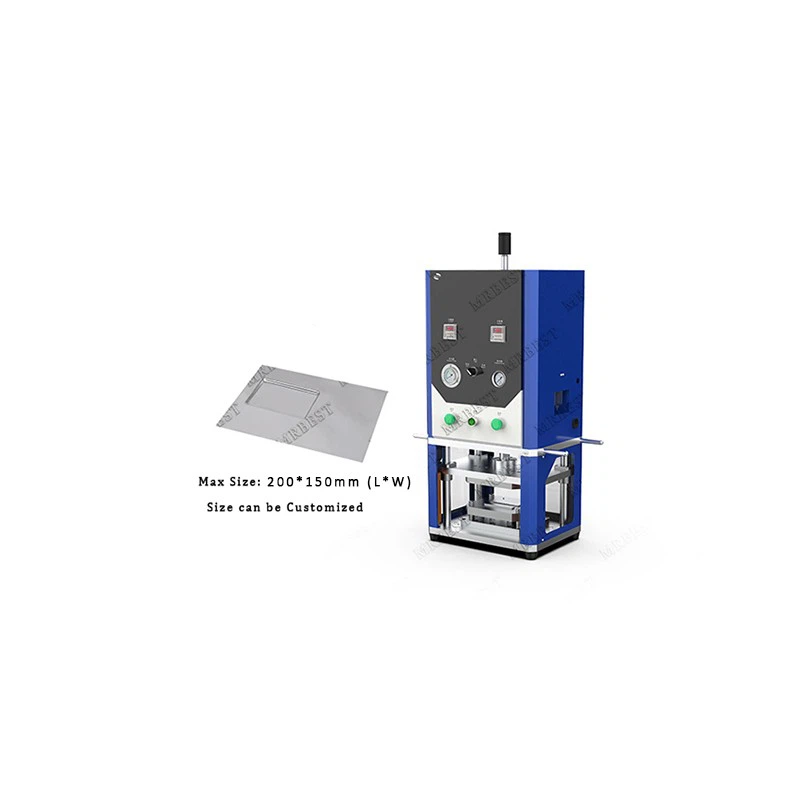

Battery lab equipment Compact Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
Pouch Cell Case/Cup Forming Machine MR-SCK200 is a necessary equipment for pouch cell preparation. It is a semi-auto pouch cell aluminum-laminated films cup forming machine, the punching thickness is adjustable. The punched case without crow's feet and corner collapse. IR sensor, dual start buttons and protection cover are included for safety operation.
Pouch Cell Case Forming Machine Features
● Punching depth can be adjusted.
● Different size of punching die can be optional and easy to replace.
● The punched case without crow's feet and corner collapse.
● The punching die can only go down only when pressing the 2 buttons at the same time to avoid hurting hands.
● IR sensor is included for safty protection.
● Protection cover is included.
● It's designed with counter for calculating the punching numbers.
Aluminum laminated film forming machine Technical Parameters
|
Model |
Pouch Cell Case/Cup Forming Machine MR-SCK200 |
|
Working voltage |
AC110V /220V optional |
|
Punching die size |
Max L200 * W150mm, customized size is available |
|
Punching depth |
≤ 6mm adjustable, customized depth is available |
|
Aluminum-laminated films thickness |
0.1~0.2mm |
|
Power |
100W |
|
Air pressure |
0.5~0.7Mpa |
|
Material feeding |
Manually |
|
Dimension |
L460 * W320 * H925mm |
|
Weight |
180kg |

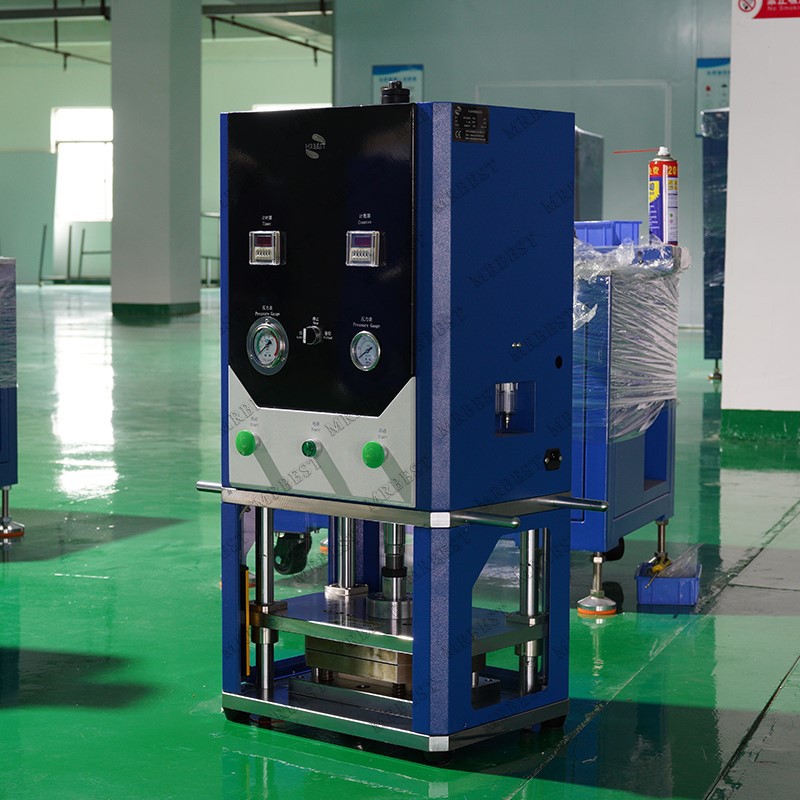

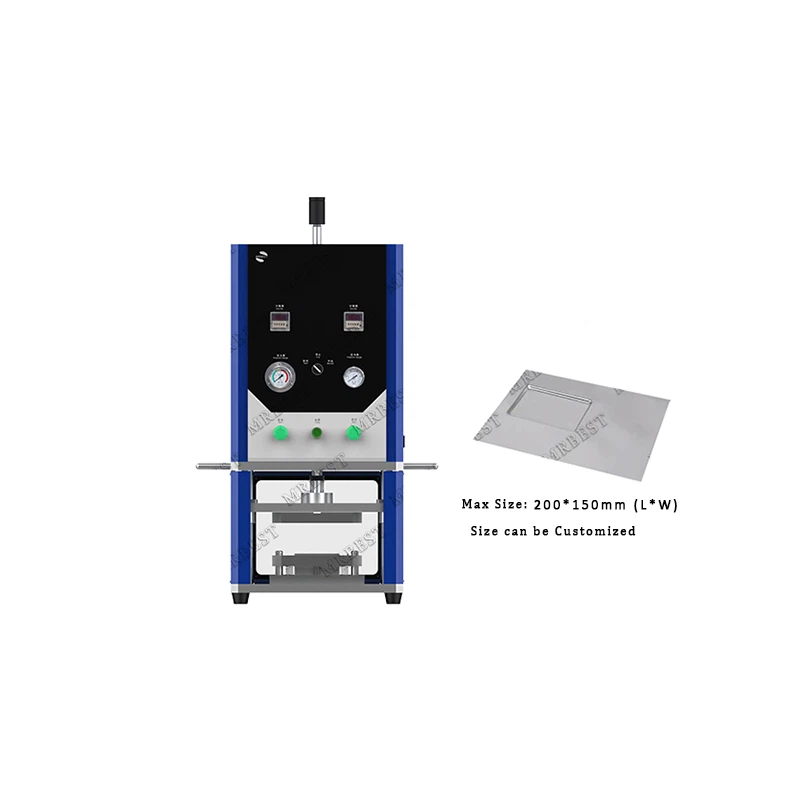

new Design Pouch Cell Cup Forming Machine Picture for Reference
