Pouch Cell Electrolyte Diffusion & Degassing Chamber
MR-JZ300

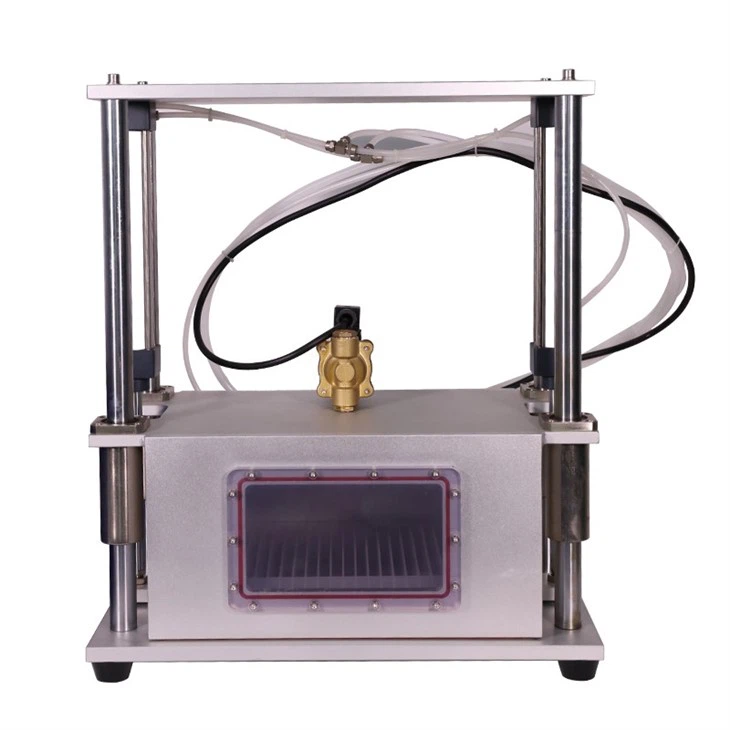

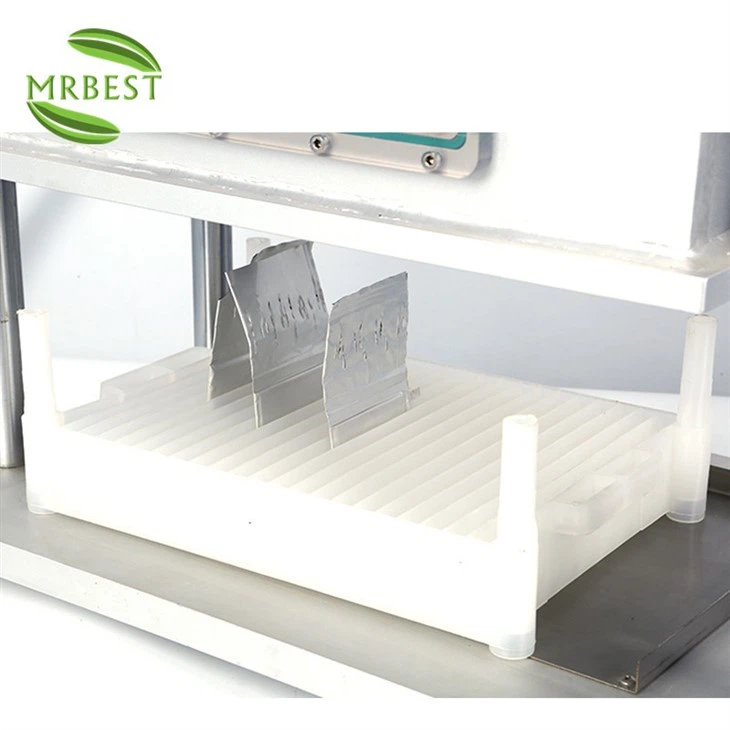

MR-JZ300 electrolyte diffusion & degassing chamber is specifically designed for lithium-ion batteries and cylindrical lithium-ion batteries. The function is to complete the vacuum standing of the battery after electrolyte filling, promote the absorption of electrolyte by the electrode piece. It can also be used for vacuum standing defoaming and vacuum storage of various materials. The equipment adopts a split design, and the vacuum chamber can be placed in the glove box for use.
features

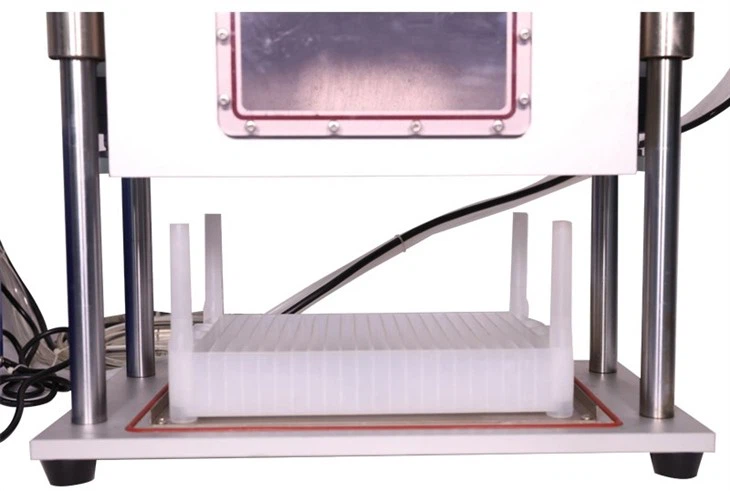

* Bell-type structure, cylinder driven, fully welded and no leakage;
* The vacuum degree can be maintained stably and the electrode piece can absorb the electrolyte well;
* Use multi-stage cycle method for vacuum storage, and the time period and number of stages can be set;
* The front glass window design allows researchers to observe internal product changes;
* The control box and the vacuum chamber are designed separately, and the vacuum chamber can be placed in the glove box for operation.
Specifications
|
Model |
Electrolyte Diffusion & Degassing Chamber MR-JZ300 |
|
Inner Chamber Size |
L325mm*W220mm*H170mm |
|
Product Dimensions |
1. Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H) 2. Control Unit: 460mm(L) x 220mm(W) x 340mm(H) |
|
Power Supply |
110-240 V, Single Phase 50/60Hz |
|
Max. Power |
100W |
|
Compressed Air |
0.5-0.8Mpa |
|
Chamber Body |
12mm thick Aluminum case with observation window |
|
Gas Filling Rate |
<= 5 psi |
|
Air Pressure Range |
0 - 1 Mpa (0 - 99 psi) Adjustable |
|
Vacuum Level |
1. Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently 2. Vacuum mode (once or twice) can be selected 3. Easy program setting for specific vacuum condition 4. -0.9 - 0 kPa adjustable |
|
Air Inflation Time |
0 - 99.99 sec |
|
Vacuum Condition Hold Time |
0 - 99.99 sec |
|
Operation Temperature |
-20 to 40 ℃ |
|
Warranty |
One Year limited warranty with lifetime support |
|
Net Weight |
50KG |
|
Application Notes |
1. KF25 Feedthrough is included to allow operation inside Glove box. |
