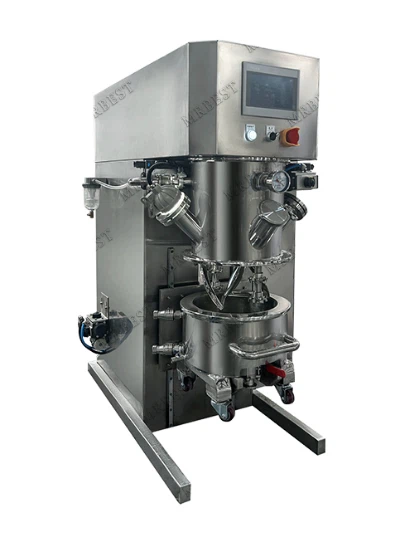

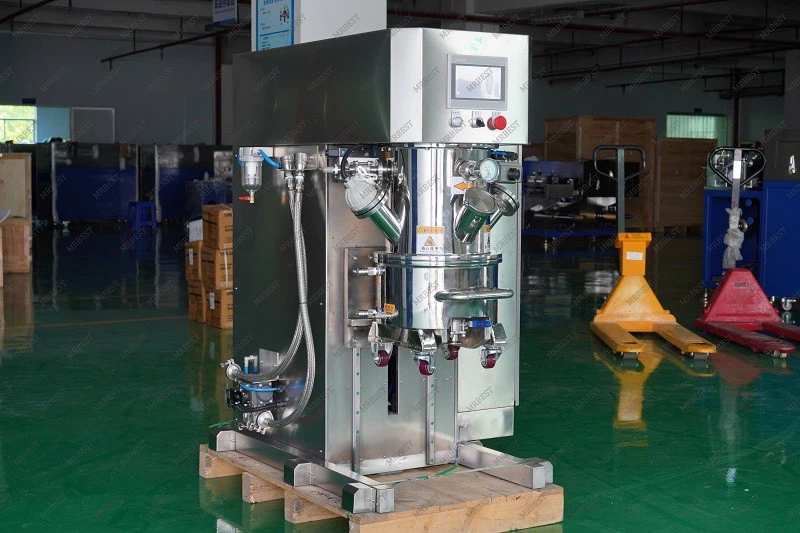

5L Planetary Vacuum Mixer For Powder And Liquid Mixing And Dispersing

Model: MR-XJB-5L

MR-XJB-5L is used for mixing dispersion of various common battery powder and liquid to achieve uniform battery slurry, especially for the high viscosity technological process. The viscosity interval of applicable operating conditions is ≤1200000cP

Features

* Form of jacket for temperature adjustment, the single-layer jacket for bucket wall is used for cooling or heating; and the single-layer jacket for bucket bottom is used for cooling or heating.

* Over temperature alarm system, safer and smarter.

* Operation failure stop: the frequency converter is self-provided with overload, overcurrent, overvoltage, leakage of electricity, short-phase protection

* Variable cross-section Non-prismatic mixing design can make slurry get better mixing effect.

* Touch screen, simple operation, high automation.

Technical Parameters

Name	Planetary Vacuum Mixer MR-XJB-5L
Effective volume	5L
Lower bucket component	Bucket inner diameter	240mm
	Bucket inner depth	180mm
	Bucket material	304 stainless steel
	Form of discharge	a G1/2'' Triple-plate discharge ball valve equipped at the bottom of bucket
Mixing component	Speed of mixing propeller	10~98rpm
	Speed of planetary gearbox	5~50rpm

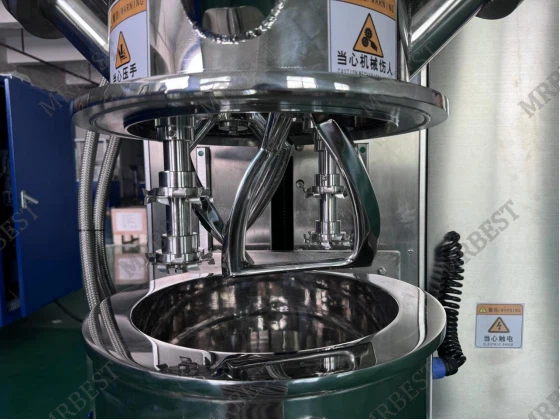

	Pattern of mixing propeller	Non-prismatic twist type, 90° spiral line
	Quantity of mixing propeller	2 pieces
	Distance between propellers	7±2mm
	Distance between propeller and bucket wall	3mm
	Distance between propeller and bucket bottom	3mm
Dispersed component	610~6100 rpm
Wiped-wall component	Material of wiped-wall plate	PTFE
	Speed of wiping wall	Consistent with the speed of planetary gearbox
Base and lifting component	Lifting mode	Electric lifting
	Lifting travel	≤290mm
Upper bucket component	Feeding hole of power powder	DN50 equipped with one quick-release sight glass
	Feeding hole of liquid	One quick-release ISO 1/2
	Spot-light	One DN50
	Vacuum connector	One G 1/2'' inner thread
Working voltage	AC 3×380V±5%, 50Hz
Total power	＞4kw
Vacuum holding	-0.0989Mpa, it is higher than -0.085Mpa after 24 hours holding, without leakage to bucket
Dimension	L1463×W610×H1770mm
Weight	700kg
