Lab Single Shaft Slurry Vacuum Mixing Machine for Battery Research
The MR-ZKJB-5 is a desktop vacuum mixer that combines vacuum mixing with dispersion capabilities. It is commonly used for mixing battery slurries, powders, and ceramic materials under vacuum to effectively remove gas bubbles. The standard mixer comes with a 150ml mixing container, with other container sizes available as optional configurations.
Features
* Integrated vacuum pump for space-saving design.
* Optional mixing container volumes available.
* Adjustable mixing time for flexibility.
* Mixing speed can be customized based on user requirements.
* Versatile and suitable for a wide range of applications.
Specifications
|
Model |
Lab Small Vacuum Mixing Machine MR-ZKJB-5 |
|
Working Voltage |
AC110V/220V optional |
|
Mixing Container |
150ml as standard, other size is optional |
|
Mixing Container Material |
Stainless steel |
|
Mixing Speed |
320rpm |
|
Mixing Paddle |
Single shaft |
|
Mixing Time |
0~99.99 hrs settable |
|
Vacuum Pump |
Built-in type |
|
Vacuum Degree |
> -80Kpa |
|
Dimension |
L330 * W310 * H510mm |
|
Weight |
20kg |

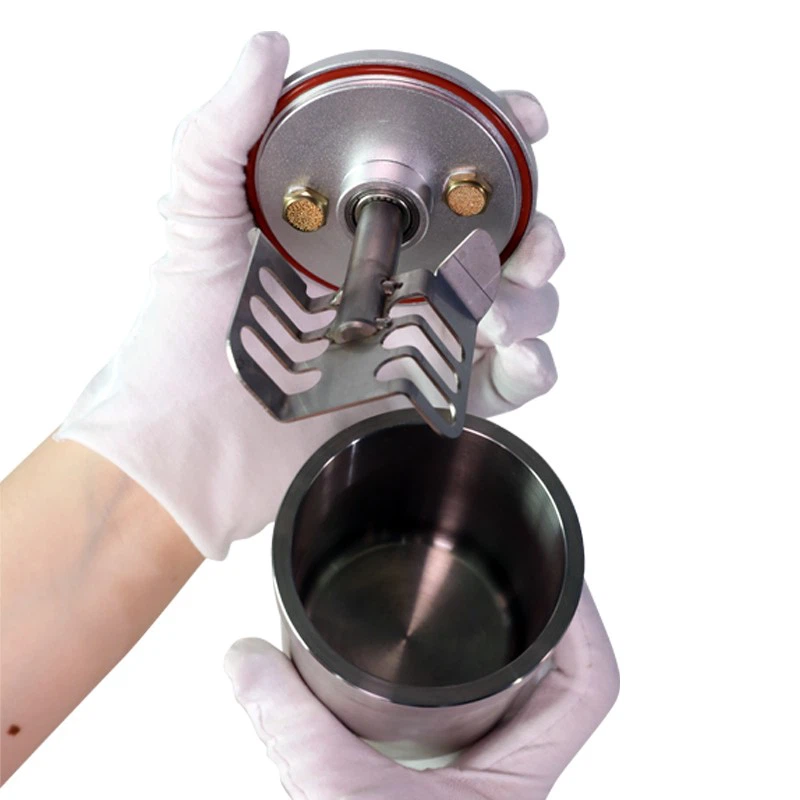

Picture for reference
