Aluminum Case Supercapacitor Grooving And Sealing Machine

Model: MR-GCFK20

MR-GCFK20 Supercapacitor Grooving And Sealing Machine is suitable for small aluminum case supercapacitor grooving and sealing.

Features

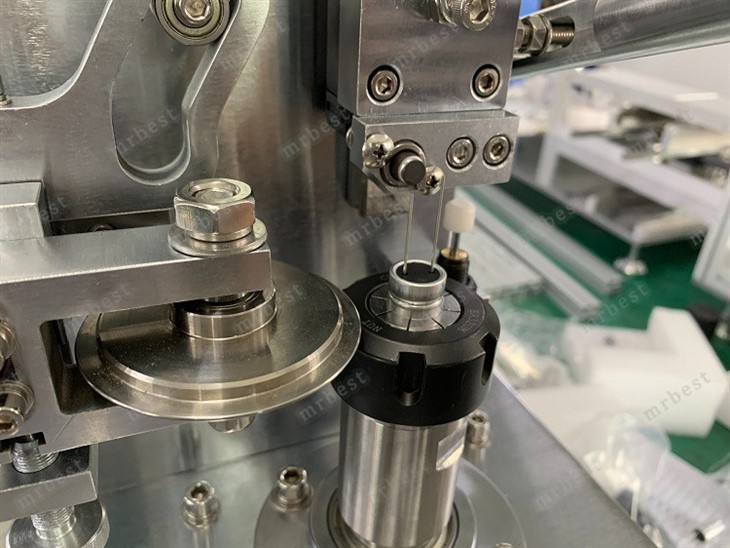

1. The clamp fixes the supercapacitor automatically, stable and without sloshing, high centering concentricity, uniform spinning seal.

2. 2. The grooving cutter is made of imported material with high hardness and long service life.

3. 3. High-precision guide rail feed, high sealing accuracy and with stable size.

4. 4. Do grooving and sealing at the same time, high efficiency

5. 5. Appearance geometric design, exquisite and beautiful, easy to operate

Specifications

Model	MR-GCFK20
Application	Suitable for Φ16 super capacitor (customized)
Sealing and grooving process	Sealing and grooving process doing at the same time
Service life	The normal service life of tooling molds is to reach more than 500,000 times.
Utilization rate	98%
Voltage source	220V/50HZ
Power	0.2KW
Demension	L260mm W500mm H 570mm(500mm width is including hand rock)
Weight	About 40kg

Maintenance Methods and precautions

1. Frequently wipe the dirt on the guide post and other moving parts to keep it clean, add oil and lubricate to keep the movement smooth.

2. If the spinning sealer is not used for a long time, clean the sealing mold and apply oil to keep the molding surface clean and smooth.

3. Regularly check the screws, nuts, pins and other fasteners on each part of the spinning-sealing machine to prevent loosening and prevent quality accidents and personal accidents of the sealing machine.
