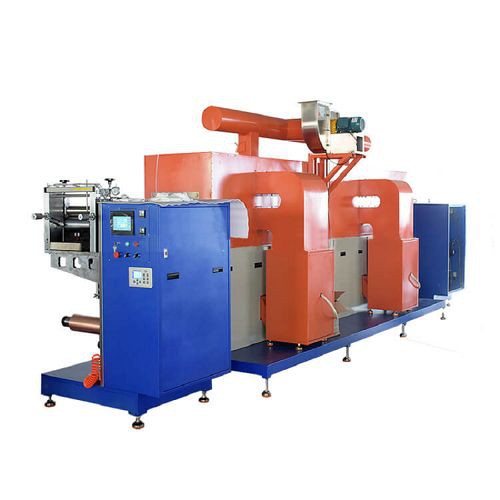

Battery Electrode Automatic Intermittent Coating Machine For Production Line
Automatic Intermittent Coating Machine is a professional coating equipment for lithium battery.
1. It is suitable for the coating process of slurry systems such as oily or water-based lithium iron phosphate, oily lithium cobaltic acid, ternary, lithium manganate, nickel cobalt lithium manganate, oily or water-based negative carbon graphite, lithium titanate, etc;
2. The tension control accuracy can reach ±1N level by using the full-automatic PID closed-loop tension control system;
3. The imported standard parts such as OMRON PLC control system and high-precision servo motor are used to ensure the ultra-high consistency and stability of the coated products in terms of surface density and size. The proportion of imported standard parts is as high as 85%.
|
Model |
Automatic Intermittent Coating Machine MR-ZST- 300-12M |
|
Power |
3PH 380V,50HZ, |
|
Suitable system |
LiFePO, lithium cobalt oxide,Lithium manganese oxide system and coating process of battery anode and cathode |
|
Operating material thickness |
Al foil: 10~30um Cu foil: 7~30um |
|
The design of the roll surface width |
300mm |
|
Guaranteed coating width |
50~280mm |
|
Mechanical running speed of equipment |
7m/min |
|
Coating speed |
1-7m/min(Depending on the drying condition) |
|
Suitable for slurry viscosity |
2000~16000 Cps |
|
Single coating thickness range |
50-150μm |
|
Minimum interval length |
5mm |
|
Multi section minimum coating length |
20mm |
|
Solvent properties |
Oiliness solvent NMP(s.g=1.033,b.p=204℃) |
|
Water solvent H2O/NMP(s.g=1.000,b.p=100℃) |
|
|
Suitable solid content |
Anode S.C. 60%±20% |
|
Cathode S.C. 60%±20%(PVDF system) S.C. 50%±5%(SBR system) |
|
|
Specific gravity |
Anode 1.5-2.59/cm2 Cathode 1~1.89/cm2 |
|
Coating method |
Double sides 3 sections, unequal intermittent transfer coating / second sides automatic tracking / continuous transfer coating |
|
Base material running direction |
Forward coating ,The base material empty foil movement Positive, reverse. |
|
Control pressure |
0 ~ 50N |
|
Rectify deviation |
EPC control,stroke 80mm |
|
Oven length |
12m |
|
Material quality |
SUS304 stainless steel,Inner tank 1.0mm,outside tank 1.2mm |
|
Warranty |
One year limited warranty with lifetime support |
Automatic Intermittent Coating Machine, the coating thickness is easy to adjust, more accuracy, easy to operate. it can do both continuous coating and interval coating.
Why choose us?
- We offer competitive prices for our Electrode Coating Machines.
- The value of the company's existence is directly proportional to the value that the company brings to customers, and we will continue to work hard to enhance customer value!
- Our Electrode Coating Machines are CE certified.
- Our core values are customer first, innovation, sincere cooperation, mutual respect and due diligence.
- Our Electrode Coating Machines are low maintenance.
- 'Professional customer value' is our company's long-term business philosophy, our company will uphold the quality, technology, innovation for the purpose, with the irresistible momentum of continuous development and growth.
- We offer technical support and training for our Electrode Coating Machines.
- In order to serve our customers more effectively, we can also develop individual Automatic Intermittent Coating Machine for our customers according to their needs.
- Our Electrode Coating Machines are trusted by many customers.
- The performance of Automatic Intermittent Coating Machine has reached the advanced level of similar products at home and abroad.
