Roll To Roll Continuous Slitting Machine For Battery Electrode Cutting
Model：MR-LFT300
Using two or more continuous slitting processes for rolled material. Roll to Roll Slitting Machine is equipped with a precision knife holder, which can achieve high precision foil slitting. It is widely used in lithium battery, metal foil, optical film and other functional film industries.
Main Features
*Correction system for feeding is set to ensure the neat coils.
*Ultrafine alloy blade, good cutting quality and long service life;
*High slitting width precision, no burrs, waves, or indentations in the finished product;
*The amount for the feed knife is adjustable, and the ratio of the knife speed to the linear speed of the material is adjustable;
*By adjusting the inlet and outlet angles, it can adapt to the cutting of different materials and thickness values;
*Single stand structure, independent knife holder, equipped with dust removal device;
*Upper and lower circular knife structure, slitting width can be adjusted by changing the sleeve;
*adjustable within 50N of upper and lower shafts;
*PLC control, HMI operation, easy to operate;
Technical Parameters
|
Model |
Roll To Roll Continuous Slitting Machine MR-LFT300 |
|
Slitting method |
Monolithic roll cutting |
|
Cutter type |
Upper and lower circular knife |
|
Width adjustment |
Replace spacer adjustment, will suggest Complete set design, easy to disassemble |
|
Materials thickness |
100 ~ 300μm |
|
Slitting blade |
Ultra fine alloy steel, diameter Φ100mm |
|
Slitting width |
Adjustment range 20 ~ 280mm(can be customized) |
|
Burr condition |
≤25μm |
|
Slitting accuracy |
±0.09mm |
|
The amount for the feed knife |
0.2 ~ 0.4mm adjustable, dial indicator display |
|
Slitting speed |
Max. 4m / min |
|
Power supply |
Single-phase voltage 220VAC ± 10%, frequency 50Hz / 60Hz, power 1kW |
|
Work environment |
Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH, no vibration and electromagnetic interference |
|
Installation size |
L900mm*W980mm*H450mm |
|
Weight |
362Kg |
|
Package Size |
1100*1040*1340mm |
|
Gross Weight |
450KG |

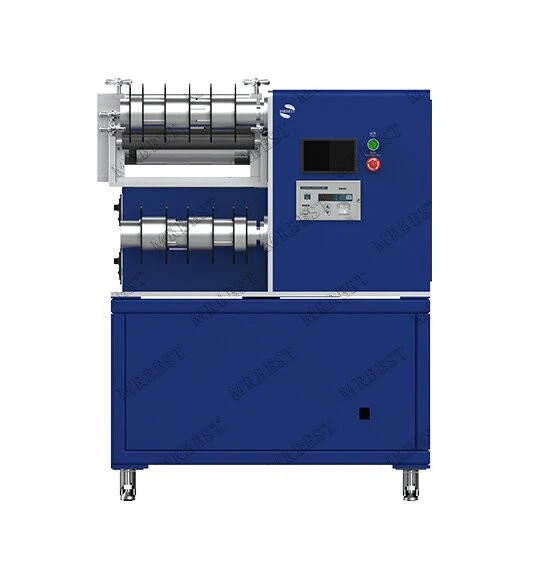

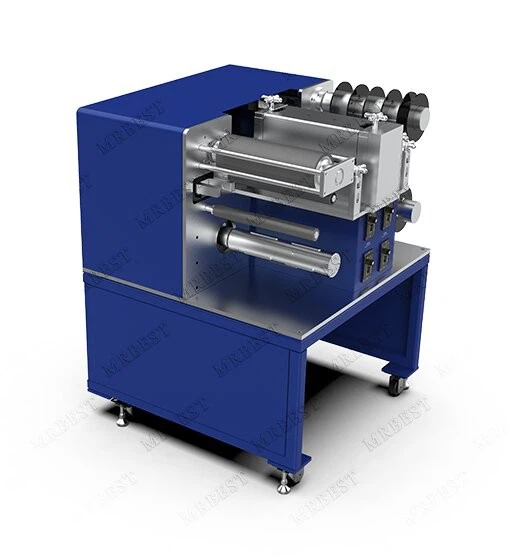

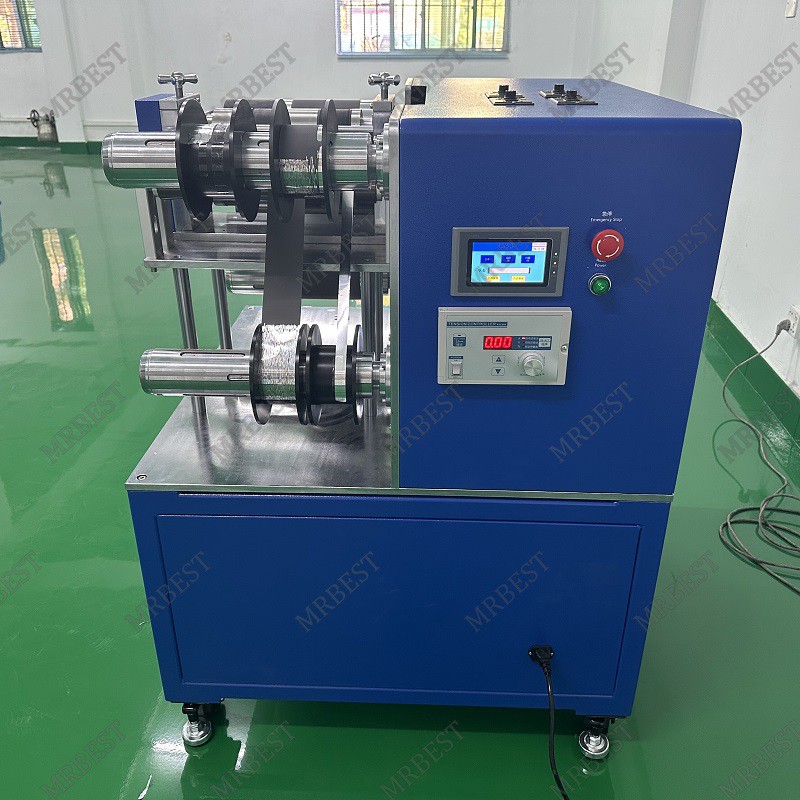

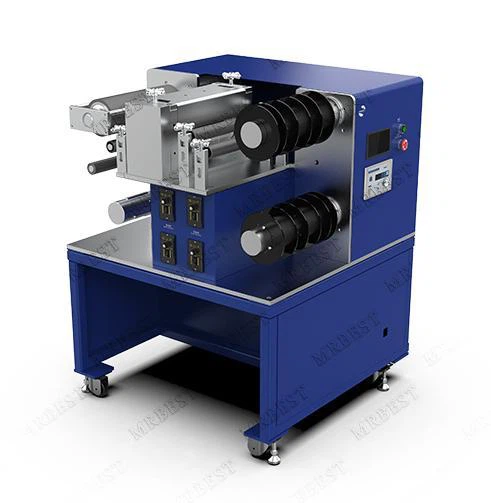

Product Display
