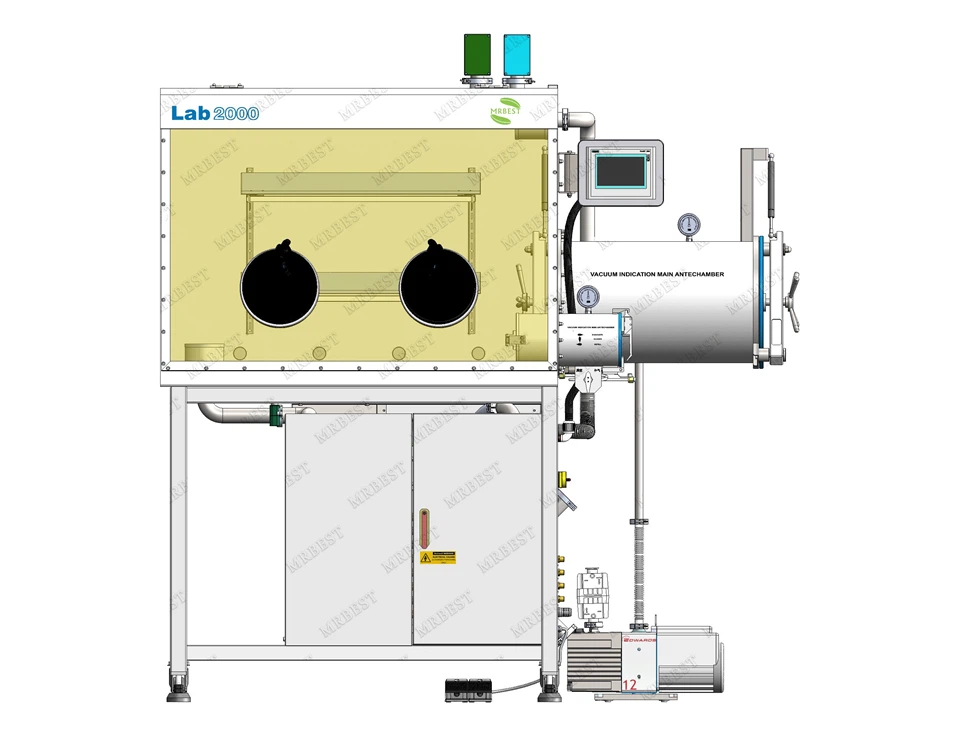

Laboratory Glove Box Single-Side(1200×750mm) Vacuum Glove Box With H2O & O2 Purification System

Model: MR-lab2000-1200×7

The Lab2000 glove box is a high-performance, high-quality closed-loop system that automatically absorbs water and oxygen molecules, purifying the working environment. It provides an inert atmosphere with O₂ and H₂O levels ≤1ppm, ensuring a clean and controlled workspace to meet your specific requirements. This Laboratory Glove Box is designed for Lithium-ion & Soudlium-ion Battery Cell Assembly

The Lab2000 system includes a closed chamber, a set of (main and mini) antichamber, a rotary vane vacuum pump, and a set of circulating purification system integrated with a microcontroller operation panel. The inert gas purification system equipped with the standard Lab2000 system is equipped with a set of purification columns (fully automatic and renewable) to purify and maintain the atmosphere inside the glove box.

Performance Specifications

* Stainless steel chamber design, tempered glass or polycarbonate front window (optional);

* Index: H2O, O2 ≤1ppm;

* Leakage rate: ≤0.001 vol% / h;

* Solenoid valve adopts modular design, leakage rate is reduced, easy to replace;

* Main antechamer with sliding tray, unique antechamber door design, light and easy to open;

* GP-20 inert gas purification system;

* SIEMENS Microcontroller;

* SIEMENS operation touch screen, easy to enter various functions;

* Data memo: Automatically record system data;

* Closed gas circulation, no oil and vacuum;

* Foot pedal instead of manual adjustment pressure control; All stainless steel gas flow pipes and accessories; EDWARDS RV12 vacuum pump;

* HEPA high efficiency filter;

* Automatic pressure control, working pressure can be set within ± 12mbar;

* Height adjustable bracket;

* Adjustable casters for easy movement;

* Lampshade with anti-reflection film;

Products Description

Structure	Integrated structure (Purification System integrated under the box)
Power Supply	110 - 220V AC, 50/60Hz, Single-phase
Glove box Box	Box Material: 304 Stainless Steel (Type 304), thickness 3mm Box Size(excluded antechamber and support): 1200mm(L) x 750mm(W) x 900mm(H) 47.2 " x 29.5" x 35.4" Box Support height: 900mm(35.43" )
Tray	Standard Layout					Two layers in box.
	Option/Add: tool boxes or other					Various tool boxes, can be placed according to user needs.
Front window	Tilt design operating window, removable safety toughened glass front window, 8mm thickness,Wear resistance, corrosion resistance, good light transmission, sealing ring using 3/8 inch thick OMEGA sealing ring.
	Option: Window Open		The front window can be designed to open instead of fix, in order to put in a variety of instruments (custom function).
Environment of Box inside	H2O <1 ppm (20°C/68 ℉, 1 atm) O2 <1 ppm (20°C/68 ℉, 1 atm)
Antechamber	Control way: manual Design: two circular antechambers Main chamber size: Φ360mm (Dia.)x 600mm(length)(location: right-side of box) 14.17 "(Dia.) x 23.62" (L) Mini chamber size: Φ150 mm(Dia.) x 300mm(L)(location: right-side of box) 5.9 "(Dia.) x11.8" (L) Vacuum degree:<=－0.1MPa(right side antechambers included main chamber and mini chamber, all of that are need vacuum and display. The vacuum pressure gauge brand is German WIKA.
	Option/add auto control way				It will automatically control the antechamber by time setting and the number of times for gas exhaust and filling.
	Option/Add: heating mode				Max temperature:200℃/ 392℉ Control accuracy：±2℃/±3.6℉ The main chamber and mini chamber are both can adding the heating function (compared with standard antechamber the size is a little different)
Working gas and regeneration gas	Working gas: 99.999% high pure N2, Ar, He and other inert gas Control gas:99.999% high pure inert gas Regeneration gas: mixing gas of working gas and H2,hydrogen(H2)Volume accounted for 5-10% If the pure system only has moisture removal function, the regeneration gas is the same with working gas
Gas purification system	Single pure column: German BASF Oxygen removal material, US UOP high moisture absorb material. The regeneration process of purification system is auto control and automatic moisture and oxygen removal function. Gas purity can be sustained and keep long-term:H2O<1ppm, O2<1ppm.
	Option: dual columns purification system (one in use and the other is reserve)	Why choose duel pure column? 1,The Pure column need to be regenerated after saturated by absorbing the oxygen and moisture. The regeneration time is 16hours. If there is no reserved column, it may stop working. (we recommend dual column purification system to factory or other unit which need glove box working Continuously); 2,The pure capacity of dual pure columns is two times as much as single column
Pressure control system	Box pressure can be auto controlled by PLC touch screen Control accuracy:±1Pa Can also be manually controlled by foot switch
Filter system	The ends of inlet and outlet both are provided with filter The filter precision is: 0.3 mu m
Closed circulating fan	High speed frequency conversion fan, flow 0-100m3/h, microprocessor control, Stainless steel device for pressure testing. With water cooling device (can equipped with water cooler and external refrigeration equipment)
Control system	SIEMENS colors touch screen (6 inches), PLC control system, Bilingual in Chinese and English can be switched Pressure sensor: -2500～2500Pa touch screen, accuracy±1Pa Pressure control: control the box pressure to one setting point (scope can be set)
measurements	Moisture analyzer: US AVCRAY brand, 0～500ppm touch screen display, precision 0.1ppm
	Oxygen analyzer: US AVCRAY brand, 0～1000ppm touch screen display, precision 0.1ppm
Vacuum Pump	Britain Brand EDWARDS, pumping speed 8.4-12m3/h, Model: RV12 Extreme pressure 2 x 10-3 mbar/1.5 x 10-3 Torr Inlet flange NW25 Outlet flange NW25 Noise level: 50 Hz 48 dBA
Glove	Brand: US GUARDIAN Material: Butyl Model for standard：8B1532
illumination system	Equipped with Fluorescent lamp. Brand: PHILIPS
Solvent removal system	Efficient adsorption of activated carbon, can effectively remove trace organic solvents;
Spare KF40 standard joint	Special design to KF40 Joint, you can lead the water into the box
Can be connected to other devices (low temperature refrigerator, film coating machine, microscope, solvent purification system, low temperature cold trap, heating furnace, etc.)	low temperature refrigerator
	microscope
	Solvent Purification System
	Coating machine			Inside connection(one door of Coating machine is inside of glove box) Outside connection
Equipment size and room requirements	Overall size			1850mm(L) x 1000mm(W) x 1950mm(H) 72.83" x39.37" x 76.77"
	Room size			2200mm(L) x 1500mm(W) x 2000mm(H) 86.6" x59" x 78.74"
Wooden Package size and weight	2185mm(L) x 1145mm(W) x 2300mm(H) 86" x 45" x 91" (5.8M3)
	650 kg (1400 lbs)
Notice	When the gas is circulating, must ensure that the piping of the circulation system is clear and cannot be blocked (if the color of the filter is changed from white to black, the filter should be replaced timely). No corrosive gas in the glove box. It needs to regenerate the column when the moisture and oxygen indicators cannot meet the work requirements. If the corrosive gas is released from inside of glove box.(such as LiPF6 electrolyte), please do not use. you must put the bottle filled with liquid seal. Vacuum pump needs to be checked the oil level and maintain in regular time.
