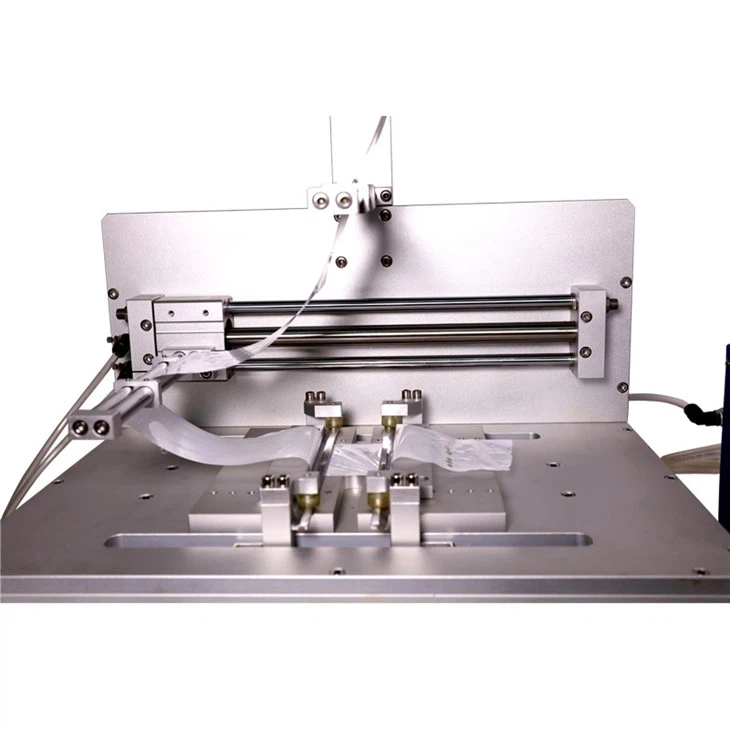

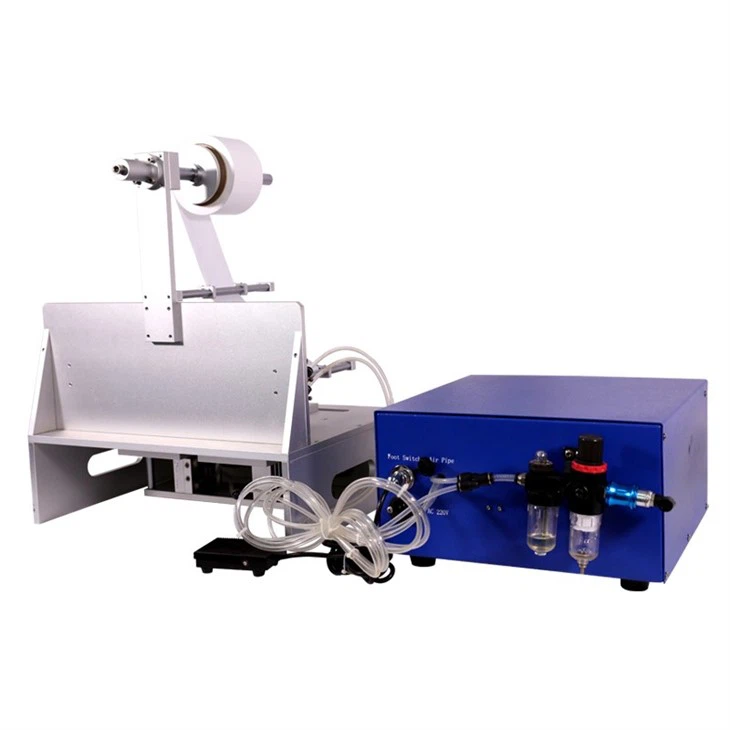

Lab Semi-automatic Battery Lithium Stacking Machine for Pouch Cell Electrode
Model：MR-BDP200-A
Product Introduction：
MR-BDP200-A is a semi-automatic pouch cell stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.
Main Features
*Desktop, can put in a normal desktop;
*Machine calibration, easy operation and maintenance;
*The machine used batteries size range is large;
*Work with high efficiency, with digital display counter;
*Use the foot switch control cylinder action
Technical Specifications
|
Model |
Pouch Cell Battery Stacking Machine MR-BDP200-A |
|
Working Voltage |
AC110V-220V Customized by requirements, 50/60Hz |
|
Power |
100W |
|
Stacking mode |
Z fashion |
|
Max separator feeding diameter |
φ250mm |
|
Fixed Travel Distance |
300mm |
|
Applicable electrode size |
Length:20～200mm Width: 20～200mm Thickness: within 18mm Larger model for apply larger electrode is also available |
|
Travel Cycle |
1 - 9999 cycles |
|
Suggested Air Pressure |
0.5 MPa (Air compressor is not included in the standard package. |
|
Product Dimensions |
Stacking Platform: 650mm(L) x 400mm(W) x 700mm(H) Control Box: 200mm(L) x 300mm(W) x 380mm(H) |
|
Glove-box Compatible |
Like in Lithium- sodium research, MR-BDP200-A can be used in the glovebox while order customized feed through to use in glove-box. Compact design enables the operation inside the glove box with Ar atmosphere where Lithium Sulfur, Lithium Air, Lithium Solid State or Li-ion half cell will be assembled. |
|
Compliance |
CE Certified |
|
Warranty |
One Year limited warranty with lifetime support |
|
Weight |
30kg |
|
Shipping Weight & Dimension |
37kg 500*500*600mm 31kg 400*450*240mm |
