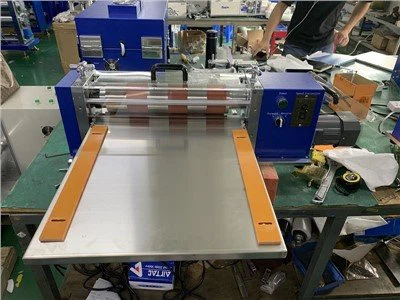

300mm Semi-Automatic Electrode Slitting Machine for Lithium Battery Machine

Model：MR-FT300

MR-FT300 is a semi-auto slitting machine for cylindrical cell electrode for battery research. The slitting width can be made according to requirement. It is a desktop equipment, simple to operate.

Features

*Adjustable guide device for feed positioning;

*Using electric rolling cutting strip;

*The meshing amount can be adjusted;

*Upper and lower blades with the same speed, synchronous transmission;

*Plexiglas protection device is arranged at the hob for safe operation;

*Open hob fixed mode, easy to disassemble the hob;

*High cutting precision and reliable work;

Specifications

Model	Semi Automatic Slitting Machine MR-FT300
Cutter type	Up and down round knife
Cutter width	20~ 300mm
Slitting width	Standard is combined die for 56mm & 58mm, Customized size is available from 20~300mm
Cuttable thickness	80-300μm battery electrode
Up and Down gap	Handwheel adjusted 0.2-0.4mm
Cutter diameter	100mm
Cutter material	Ultra-fine grained alloy steel
Slitting speed	<2m/min,adjustable
Power supply	AC220V/50Hz (AC110V/60HZ)
Power Consumption	0.5KW
Dimensions	length 840 × width 600 × height 310 (mm)
Weight	90 KGS
Warranty	One year limited with lifetime technical support
