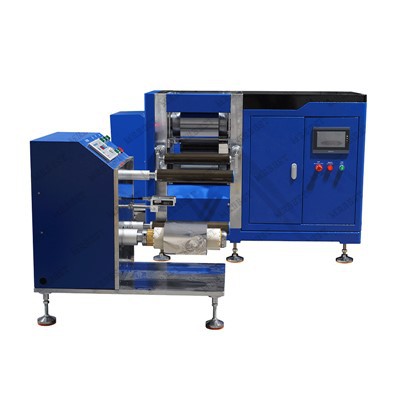

Roll To Roll Battery Calendering Machine for lithium battery electrode continuous roll to roll press

MR-DG300-R is an Automatic Battery Electrode Rolling Press System with precision digital pressure control in a compact size.

It integrates tension controlled feeding and winding devices together with Pressure Controlled Electric Rolling Press Machine to achieve attention-free electrode rolling & pressing up to 80 meters long with the 300mm max width. It is a perfect tool for building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries to prepare electrode sheets at consistent and repeatable rolling conditions.

Features

* Equipped with a winding device, the wound substrate can be continuously rolled up;

* The winding mechanism is equipped with an automatic deviation correction device to ensure that the winding edge is neat after winding;

* Adopt Panasonic imported torque motor, with constant tension function, tight winding;

* Servo hydraulic system, automatic control of rolling pressure;

* Integral gantry frame, CNC precision machining, ensures high precision and high stability;

* The roller is made of cold-rolled chrome-molybdenum material, which is heat-treated, chrome-plated and cryogenically treated. It has high hardness inside and outside and good wear resistance.

* Patented hydraulic balanced winding mechanism, stable pressure, good lateral and longitudinal winding uniformity;

* Gap adjustment device for inclined rollers, with display adjustment;

*PLC. Touch screen control, easy parameter setting;
