200°C Horizontal Hot Rolling Press with Asynchronous Speed for Dry Electrode Preparation
Model: MR-JS200W-3G
MR-JS200W-3G Horizontal Hot Rolling Press Machine with Asynchronous Speed is a solid-state battery electrode dry process film forming equipment, independently developed by MRBEST. The three rollers are adjusted by independent motors, and the speed can be set independently (first roller 0-37mm/s; second roller 0-22mm/s; third roller 0-37mm/s), and the gap between the rollers can be set independently. Max. 0-2mm adjustable; independent setting of temperature, Max. 200℃. It is especially suitable for Dry Electrode Film Rolling Press!
features
* Three motors are used for differential heating and rolling, with adjustable temperature and digital display.
* The rollers are heated internally, and the temperature is more accurate.
* The rollers are of high hardness, and the surface is hard chrome plated, with a hardness of up to HRC62 and rust-proof.
* The horizontal design facilitates the feeding and rolling of powder materials.
* The gear meshing rotation is used to achieve roller pressing.
* The Rolling thickness and speed can be adjusted, and the appearance is exquisite and beautiful.
* Electric rolling
* Small size, easy operation, flexible and fast use.
Specifications
|
Model |
Horizontal Hot Rolling Press Machine with Asynchronous Speed for Dry Electrode MR-JS200-3G |
|
Rolling Width |
200mm (Can be customized) |
|
Roller Diameter and Quantity |
3*Φ96mm |
|
Roller Gap |
0-2mm adjustable Gap width gauge accuracy: ±10micron (0.01mm) |
|
*Roller Cylindricality |
≤±2um |
|
Roller Finish |
0.4 or above |
|
Motor and speed |
Three rollers with independent motor adjustment (first roller 0-37mm/s; second roller 0-22mm/s; third roller 0-37mm/s) |
|
Heating Temperature |
Max. 200°C, digital display Temperature Control: Precision temperature controller with +/-1°C Accuracy |
|
*Operation Mode |
Electric |
|
Rate Voltage |
AC 110 - 240V Single phase, 50/60Hz |
|
Power Consumption |
2.2KW |
|
Surface Hardness of Rollers |
HRC62 Never roll materials with hardness > 50HRC (bench top rolling press is not suitable for calendering thick metals.) |
|
Dimensions |
L830mm*W500mm*H480mm |
|
Net Weight |
195kg |
|
Shipping Dimensions |
L950mm*W550mm*H700mm |
|
Shipping Weight |
255kg |

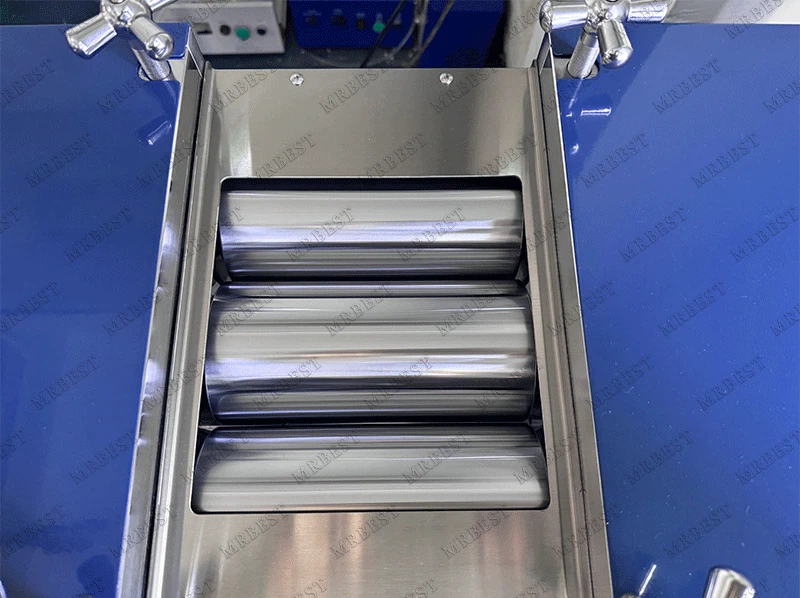

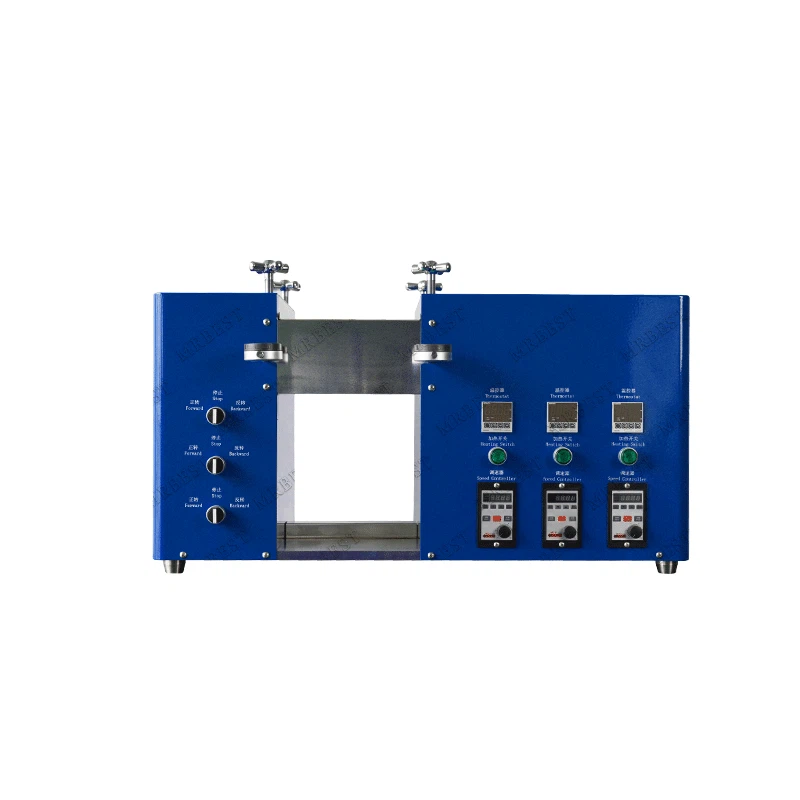

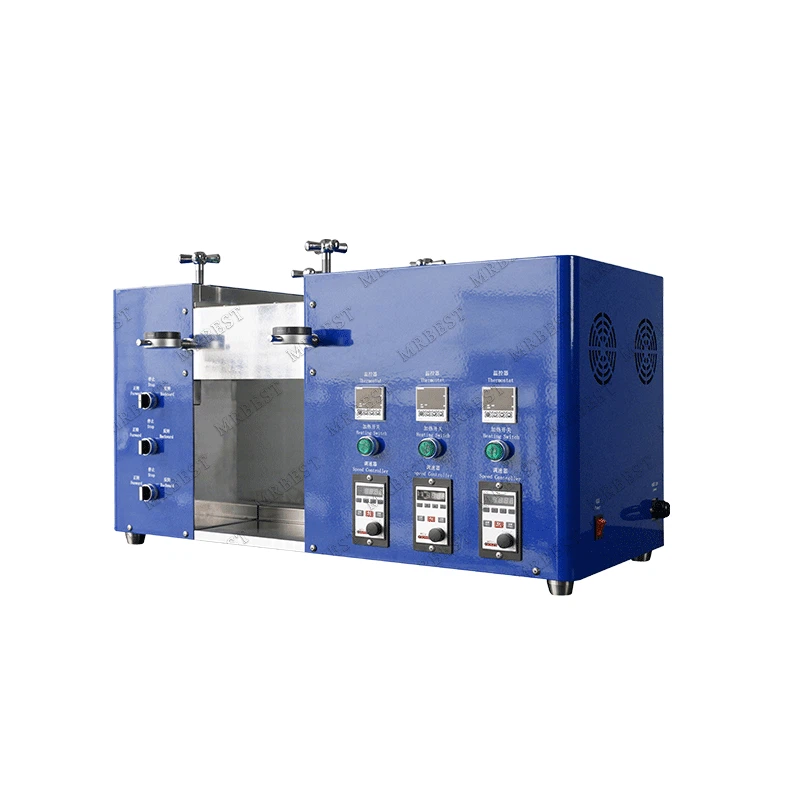

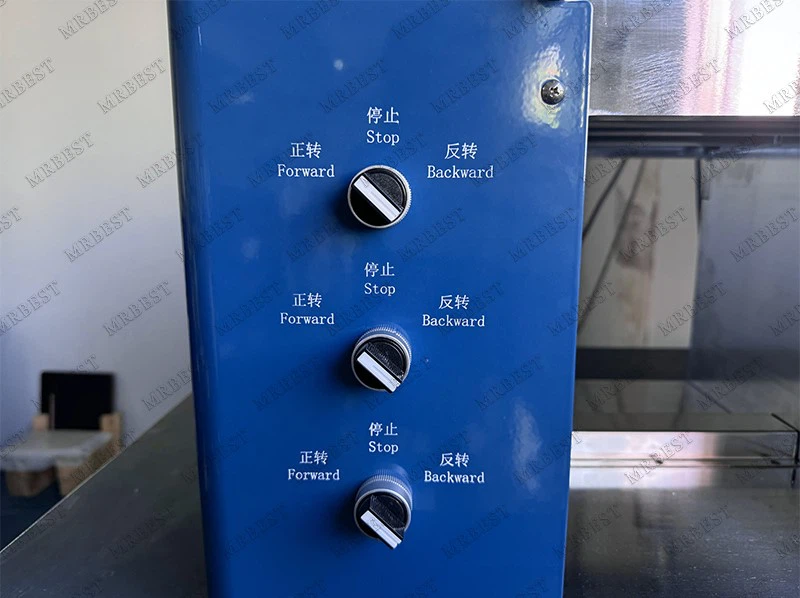

Picture for reference
